# 流程监控报表导入说明

​ 本文档主要描述如何在AFCenter上导入流程监控报表功能，不包含报表开发及报表应用相关功能说明，具体相关文档需要参考AFCenter对应其他的文档即可。

附件包如下：

idata元数据包

低开报表资源包

# 导入构件包

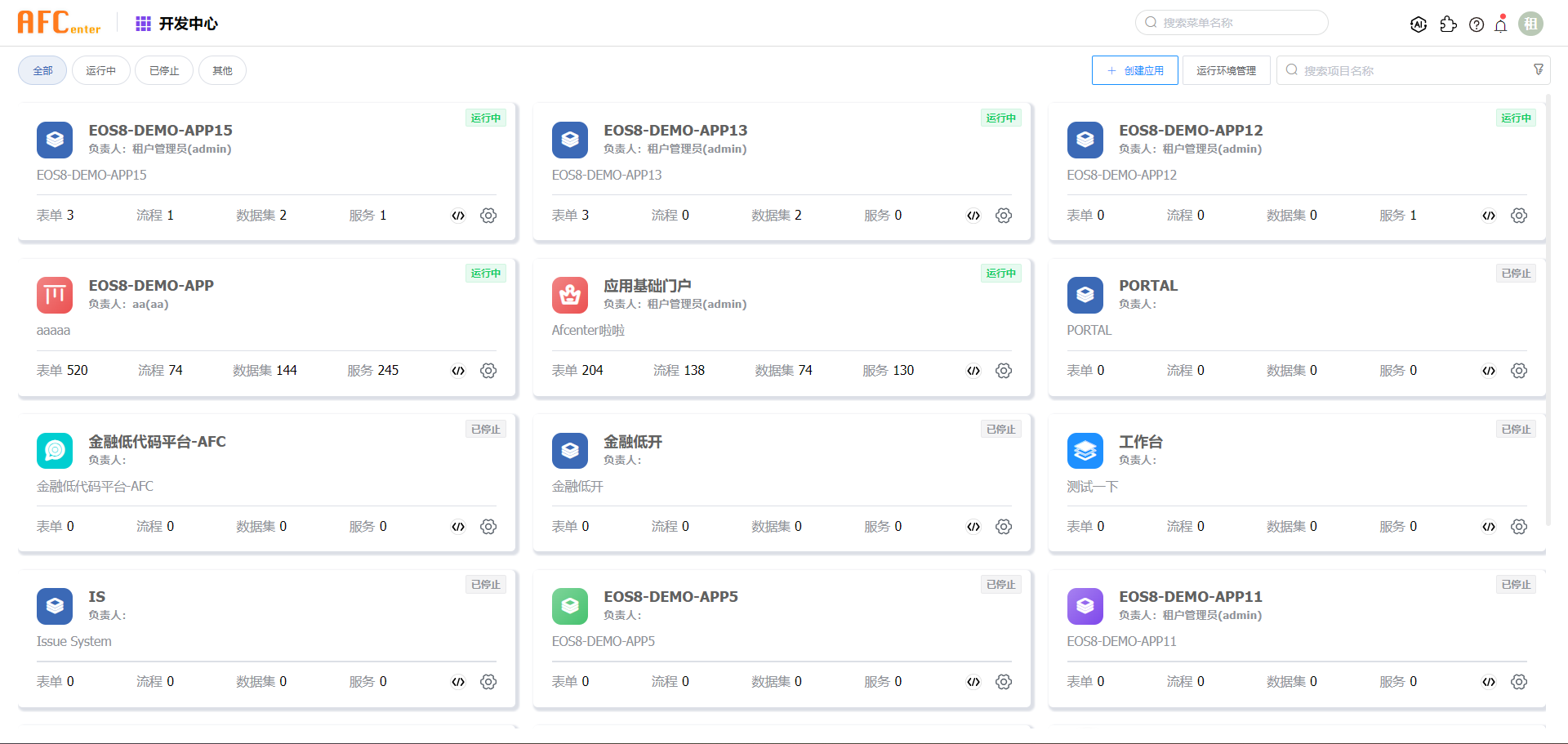

  1. 登录AFCenter，打开开发中心

    image-20231207150309121

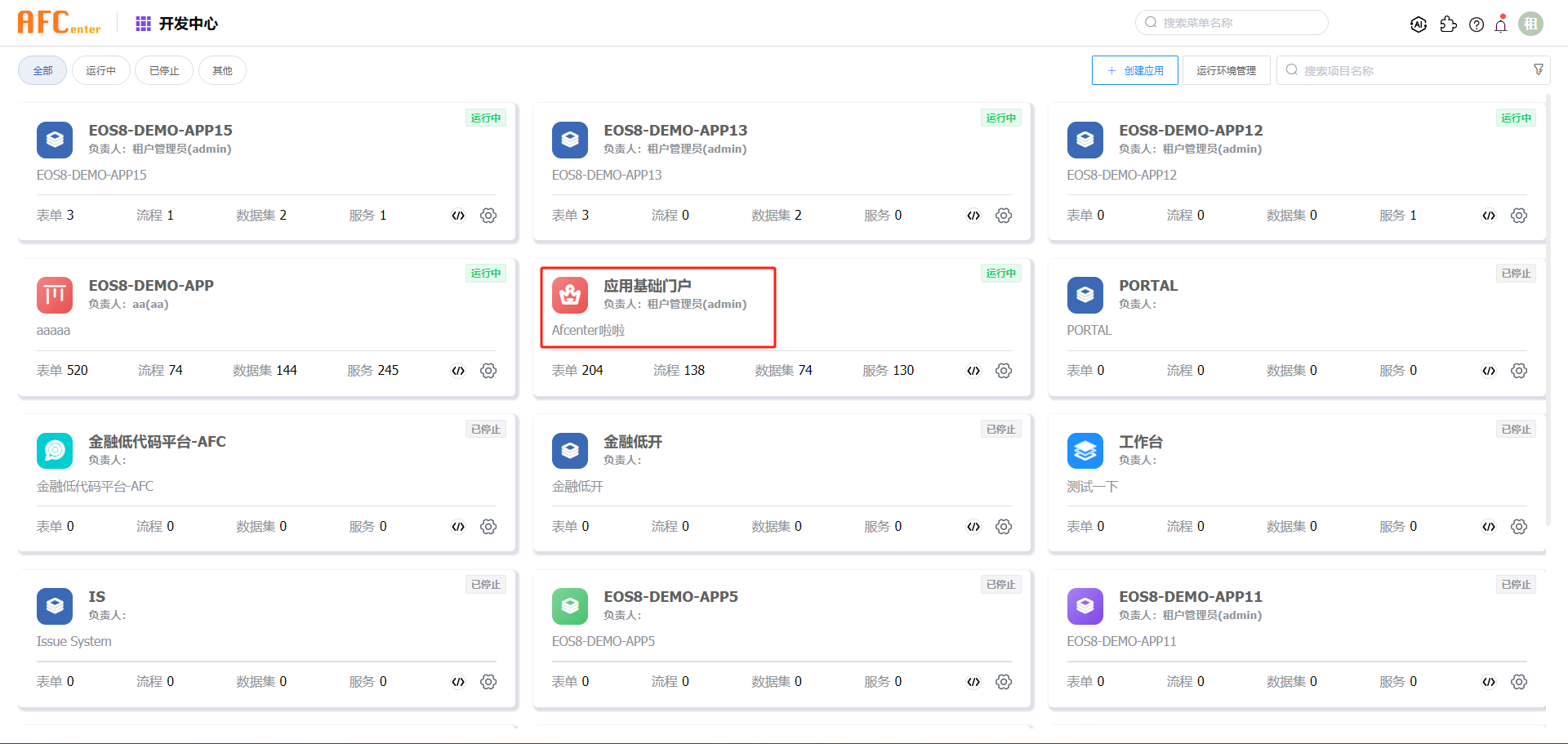

  2. 选择一个报表应用，打开该应用

    image-20231207150445191

  3. 在报表应用的ide中点击导入构件包afc_lowcode_project_contribution_AFCENTER.zip

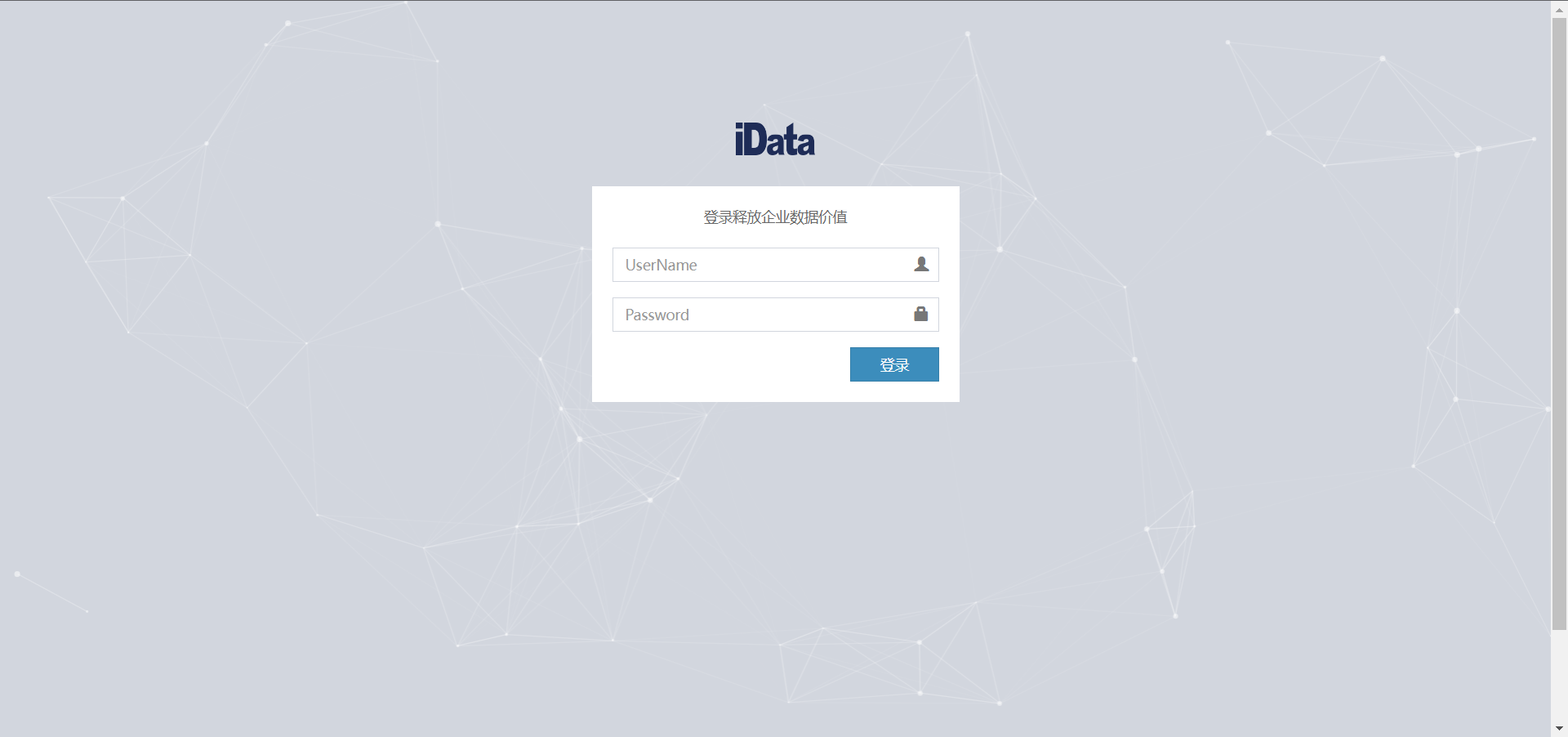

  4. 打开配置的Idata报表应用，并登录

    image-20230227162333861

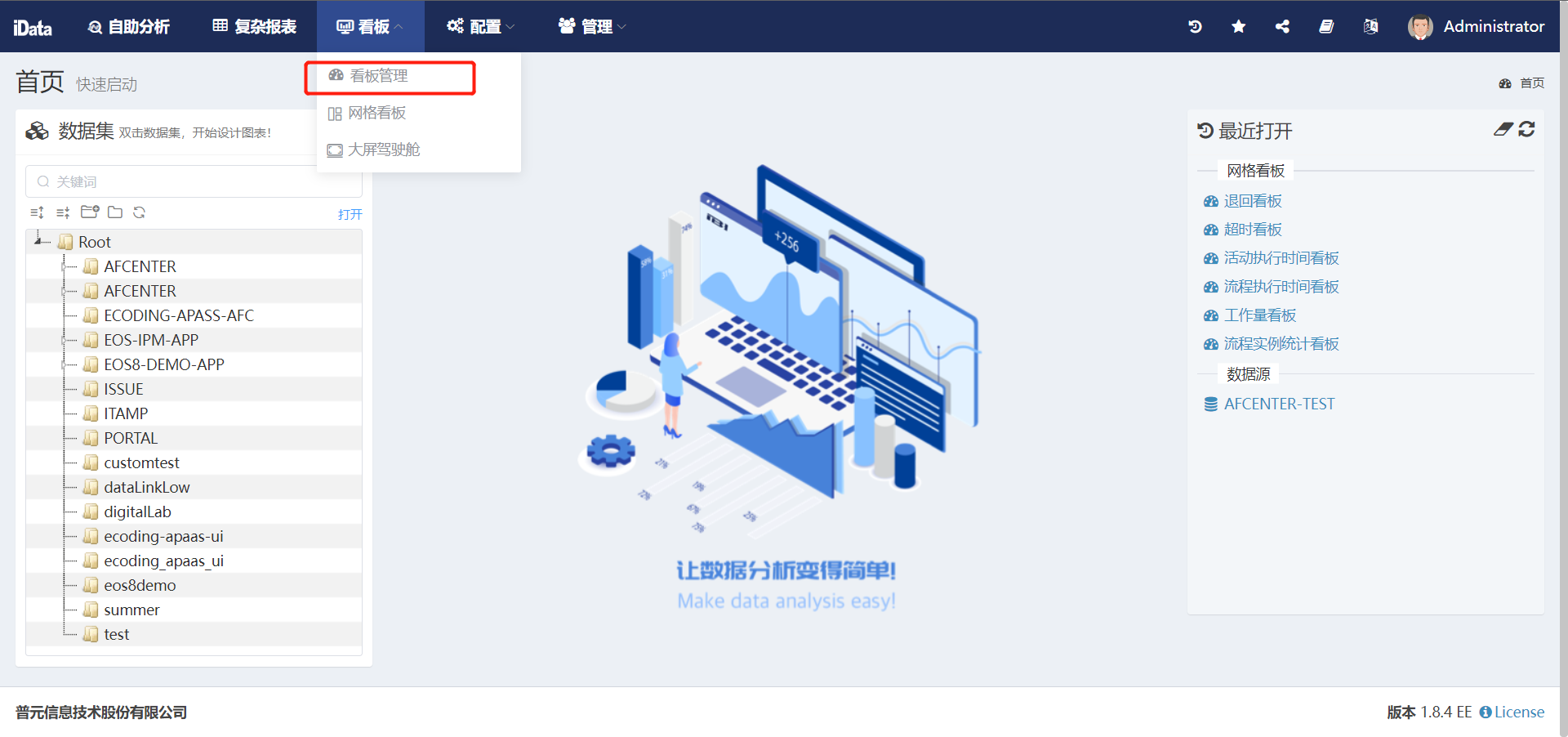

  5. 打开看板管理页面

    image-20230227162505692

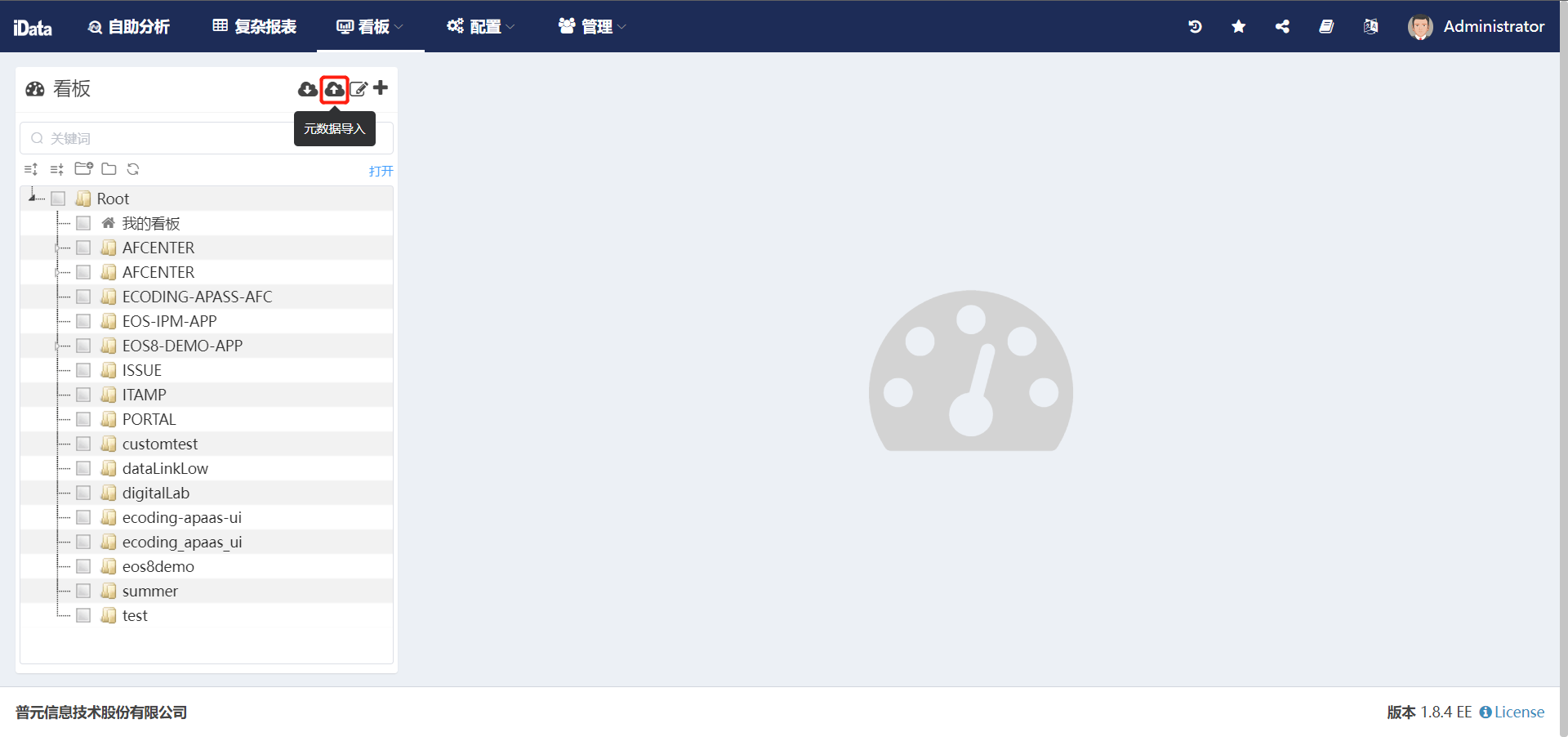

  6. 选择元数据导入

    image-20230227162541915

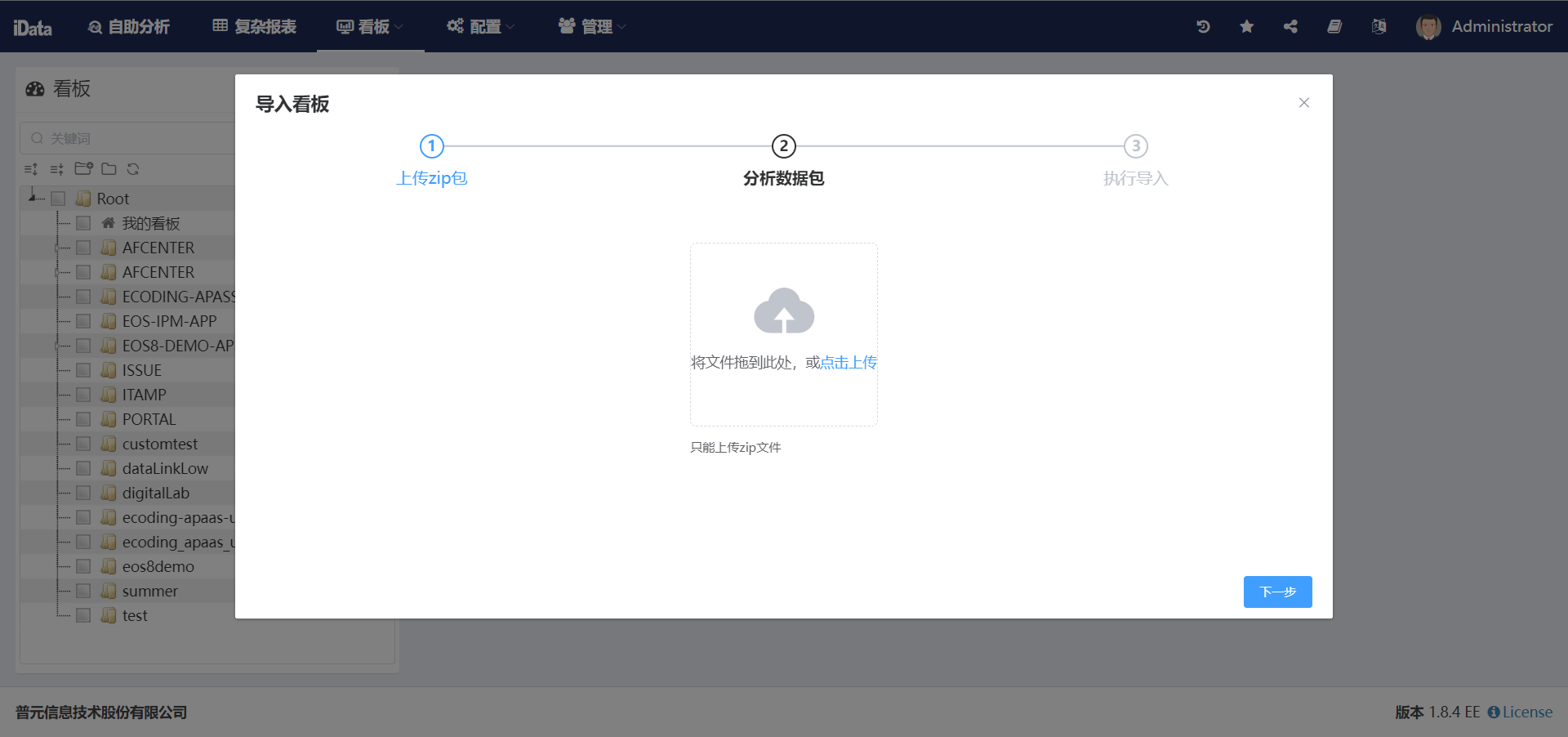

  7. 选择idata元数据压缩包，然后按照步骤指引进行导入

    image-20230227162721103

  8. 在AFCenter中执行初始化脚本

   INSERT INTO afc_menu (ID, NAME, CODE, RES_ID, DESCRIPTION, SORT_NO, IS_LEAF, TREE_LEVEL, SEQ, PARENT_ID, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED, OPEN_TYPE, MENU_ICON, MENU_TYPE, BUSINESS_OBJ_ID, IS_NEW_WINDOW_OPEN) VALUES ('270', '流程统计分析', 'process_statistical_analysis', null, null, 3, '0', null, null, 'root', 'sys_tenant', '2023-02-14 15:22:15', null, 'admin', null, null, null, 'gongsijieshao', null, null, '');
   INSERT INTO afc_menu (ID, NAME, CODE, RES_ID, DESCRIPTION, SORT_NO, IS_LEAF, TREE_LEVEL, SEQ, PARENT_ID, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED, OPEN_TYPE, MENU_ICON, MENU_TYPE, BUSINESS_OBJ_ID, IS_NEW_WINDOW_OPEN) VALUES ('271', '工作量', 'process_workload', '650', null, 3, '1', null, null, '270', 'sys_tenant', '2023-02-14 15:26:33', null, 'admin', null, null, null, 'dingdan', null, null, '');
   INSERT INTO afc_menu (ID, NAME, CODE, RES_ID, DESCRIPTION, SORT_NO, IS_LEAF, TREE_LEVEL, SEQ, PARENT_ID, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED, OPEN_TYPE, MENU_ICON, MENU_TYPE, BUSINESS_OBJ_ID, IS_NEW_WINDOW_OPEN) VALUES ('272', '流程执行时间', 'process_exe_time', '652', null, 3, '1', null, null, '270', 'sys_tenant', '2023-02-14 15:27:14', null, 'admin', null, null, null, 'shuju_3', null, null, '');
   INSERT INTO afc_menu (ID, NAME, CODE, RES_ID, DESCRIPTION, SORT_NO, IS_LEAF, TREE_LEVEL, SEQ, PARENT_ID, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED, OPEN_TYPE, MENU_ICON, MENU_TYPE, BUSINESS_OBJ_ID, IS_NEW_WINDOW_OPEN) VALUES ('273', '活动执行时间', 'process_active_time', '651', null, 3, '1', null, null, '270', 'sys_tenant', '2023-02-14 15:28:00', null, 'admin', null, null, null, 'jiaojuan', null, null, '');
   INSERT INTO afc_menu (ID, NAME, CODE, RES_ID, DESCRIPTION, SORT_NO, IS_LEAF, TREE_LEVEL, SEQ, PARENT_ID, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED, OPEN_TYPE, MENU_ICON, MENU_TYPE, BUSINESS_OBJ_ID, IS_NEW_WINDOW_OPEN) VALUES ('274', '实例规模', 'process_instance', '653', null, 3, '1', null, null, '270', 'sys_tenant', '2023-02-14 15:28:34', null, 'admin', null, null, null, 'jingbao', null, null, '');
   INSERT INTO afc_menu (ID, NAME, CODE, RES_ID, DESCRIPTION, SORT_NO, IS_LEAF, TREE_LEVEL, SEQ, PARENT_ID, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED, OPEN_TYPE, MENU_ICON, MENU_TYPE, BUSINESS_OBJ_ID, IS_NEW_WINDOW_OPEN) VALUES ('275', '退回', 'process_rollback', '654', null, 3, '1', null, null, '270', 'sys_tenant', '2023-02-14 15:29:10', null, 'admin', null, null, null, 'xiangji_2', null, null, '');
   INSERT INTO afc_menu (ID, NAME, CODE, RES_ID, DESCRIPTION, SORT_NO, IS_LEAF, TREE_LEVEL, SEQ, PARENT_ID, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED, OPEN_TYPE, MENU_ICON, MENU_TYPE, BUSINESS_OBJ_ID, IS_NEW_WINDOW_OPEN) VALUES ('276', '超时', 'process_timeout', '655', null, 3, '1', null, null, '270', 'sys_tenant', '2023-02-14 15:30:00', null, 'admin', null, null, null, 'naozhong1', null, null, '');
   INSERT INTO afc_menu (ID, NAME, CODE, RES_ID, DESCRIPTION, SORT_NO, IS_LEAF, TREE_LEVEL, SEQ, PARENT_ID, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED, OPEN_TYPE, MENU_ICON, MENU_TYPE, BUSINESS_OBJ_ID, IS_NEW_WINDOW_OPEN, APP_ID) VALUES ('277', '数据汇总', 'bfp_data_summary', '656', null, 10, '1', null, null, '270', 'sys_tenant', '2023-02-16 14:29:39', null, 'admin', null, null, null, 'tongji', null, null, '', null);


   INSERT INTO afc_res_group (ID, NAME, CODE, TYPES, RES_TYPE, DESCRIPTION, APP_ID, BUSINESS_OBJ_ID, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, SORT_NO, IS_FIXED) VALUES ('141', '流程统计分析', 'process_statistical_analysis', null, null, null, '1', null, 'sys_tenant', '2023-02-14 15:23:25', null, 'admin', null, 1, null);
   INSERT INTO afc_resource (ID, NAME, CODE, TYPES, APP_ID, RES_GROUP_ID, SUB_TYPE, DESCRIPTION, BUSINESS_OBJ_ID, CONTENT, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED) VALUES ('650', '工作量', 'board_230208220353339', 'url', '1', '141', null, null, null, '{"openType":"lowReport","mark":null,"url":null,"params":null,"microUrl":null,"microMark":null,"isLowOrHigh":"high","resourceCode":null,"formStatus":null,"resourceType":null,"viewType":null,"appCode":"AFCENTER","query":null,"processDefName":null,"biId":230208220353339,"biType":"freelayout","bicode":"board_230208220353339"}', 'sys_tenant', '2023-02-14 15:23:45', null, 'admin', null, null);
   INSERT INTO afc_resource (ID, NAME, CODE, TYPES, APP_ID, RES_GROUP_ID, SUB_TYPE, DESCRIPTION, BUSINESS_OBJ_ID, CONTENT, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED) VALUES ('651', '活动执行时间', 'board_230213222525591', 'url', '1', '141', null, null, null, '{"openType":"lowReport","mark":null,"url":null,"params":null,"microUrl":null,"microMark":null,"isLowOrHigh":"high","resourceCode":null,"formStatus":null,"resourceType":null,"viewType":null,"appCode":"AFCENTER","query":null,"processDefName":null,"biId":230213222525591,"biType":"freelayout","bicode":"board_230213222525591"}', 'sys_tenant', '2023-02-14 15:24:02', null, 'admin', null, null);
   INSERT INTO afc_resource (ID, NAME, CODE, TYPES, APP_ID, RES_GROUP_ID, SUB_TYPE, DESCRIPTION, BUSINESS_OBJ_ID, CONTENT, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED) VALUES ('652', '流程执行时间', 'board_230213184257717', 'url', '1', '141', null, null, null, '{"openType":"lowReport","mark":null,"url":null,"params":null,"microUrl":null,"microMark":null,"isLowOrHigh":"high","resourceCode":null,"formStatus":null,"resourceType":null,"viewType":null,"appCode":"AFCENTER","query":null,"processDefName":null,"biId":230213184257717,"biType":"freelayout","bicode":"board_230213184257717"}', 'sys_tenant', '2023-02-14 15:24:14', null, 'admin', null, null);
   INSERT INTO afc_resource (ID, NAME, CODE, TYPES, APP_ID, RES_GROUP_ID, SUB_TYPE, DESCRIPTION, BUSINESS_OBJ_ID, CONTENT, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED) VALUES ('653', '超时', 'board_230214222637281', 'url', '1', '141', null, null, null, '{"openType":"lowReport","mark":null,"url":null,"params":null,"microUrl":null,"microMark":null,"isLowOrHigh":"high","resourceCode":null,"formStatus":null,"resourceType":null,"viewType":null,"appCode":"AFCENTER","query":null,"processDefName":null,"biId":230214222637281,"biType":"freelayout","bicode":"board_230214222637281"}', 'sys_tenant', '2023-02-14 15:24:31', null, 'admin', null, null);
   INSERT INTO afc_resource (ID, NAME, CODE, TYPES, APP_ID, RES_GROUP_ID, SUB_TYPE, DESCRIPTION, BUSINESS_OBJ_ID, CONTENT, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED) VALUES ('654', '退回', 'board_230214181948324', 'url', '1', '141', null, null, null, '{"openType":"lowReport","mark":null,"url":null,"params":null,"microUrl":null,"microMark":null,"isLowOrHigh":"high","resourceCode":null,"formStatus":null,"resourceType":null,"viewType":null,"appCode":"AFCENTER","query":null,"processDefName":null,"biId":230214181948324,"biType":"freelayout","bicode":"board_230214181948324"}', 'sys_tenant', '2023-02-14 15:24:41', null, 'admin', null, null);
   INSERT INTO afc_resource (ID, NAME, CODE, TYPES, APP_ID, RES_GROUP_ID, SUB_TYPE, DESCRIPTION, BUSINESS_OBJ_ID, CONTENT, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED) VALUES ('655', '实例规模', 'board_230214004921818', 'url', '1', '141', null, null, null, '{"openType":"lowReport","mark":null,"url":null,"params":null,"microUrl":null,"microMark":null,"isLowOrHigh":"high","resourceCode":null,"formStatus":null,"resourceType":null,"viewType":null,"appCode":"AFCENTER","query":null,"processDefName":null,"biId":230214004921818,"biType":"freelayout","bicode":"board_230214004921818"}', 'sys_tenant', '2023-02-14 15:25:02', null, 'admin', null, null);
   INSERT INTO afc_resource (ID, NAME, CODE, TYPES, APP_ID, RES_GROUP_ID, SUB_TYPE, DESCRIPTION, BUSINESS_OBJ_ID, CONTENT, TENANT_ID, CREATE_TIME, UPDATE_TIME, CREATE_USER, UPDATE_USER, IS_FIXED) VALUES ('656', '数据汇总', 'bfp_data_summary', 'url', '1', '141', null, null, null, '{"openType":"microApp","mark":"bfp_data_summary","url":null,"params":null,"microUrl":null,"microMark":"bfp","isLowOrHigh":"high","resourceCode":null,"formStatus":null,"resourceType":null,"viewType":null,"appCode":"AFCENTER","query":null,"processDefName":null,"biId":null,"biType":null,"bicode":null}', 'sys_tenant', '2023-02-16 14:27:53', null, 'admin', null, null);

其中涉及afc_menu和afc_resource两张表的菜单数据需要插入，如果发生主键冲突问题，可按照如下方式解决：

​ afc_res_group表：

  1. 查看eos_unique_table表，找到name属性值为ResGroup.id的这一项，查看最大code为多少
  2. 然后修改afc_res_group表的插入语句主键
  3. 插入完成后更新eos_unique_table表的ResGroup.id的这一项，使其值大于afc_res_group表插入语句的最大值即可

​ afc_resource表：

  1. 查看eos_unique_table表，找到name属性值为Resource.id的这一项，查看最大code为多少
  2. 然后修改afc_resource表的插入语句主键，如果afc_res_group表的流程统计分析这条语句也发生主键冲突，则afc_resource表的插入语句都需要修改PARENT_ID为afc_res_group表的流程统计分析这条语句的id
  3. 插入完成后更新eos_unique_table表的Resource.id的这一项，使其值大于resource表插入语句的最大值即可

​ afc_menu表：

  1. 查看eos_unique_table表，找到name属性值为Menu.id的这一项，查看最大code为多少

  2. 然后修改afc_menu表的插入语句主键，其中第一条流程统计分析的插入语句为主菜单，不需要修改PARENT_ID，其他该表的插入语句都需要修改PARENT_ID为第一条的id

  3. 如果afc_resource表的数据也冲突，则按照对应关系修改每条menu表插入语句的RES_ID即可

  4. 插入完成后更新eos_unique_table表的Menu.id的这一项，使其值大于menu表插入语句的最大值即可

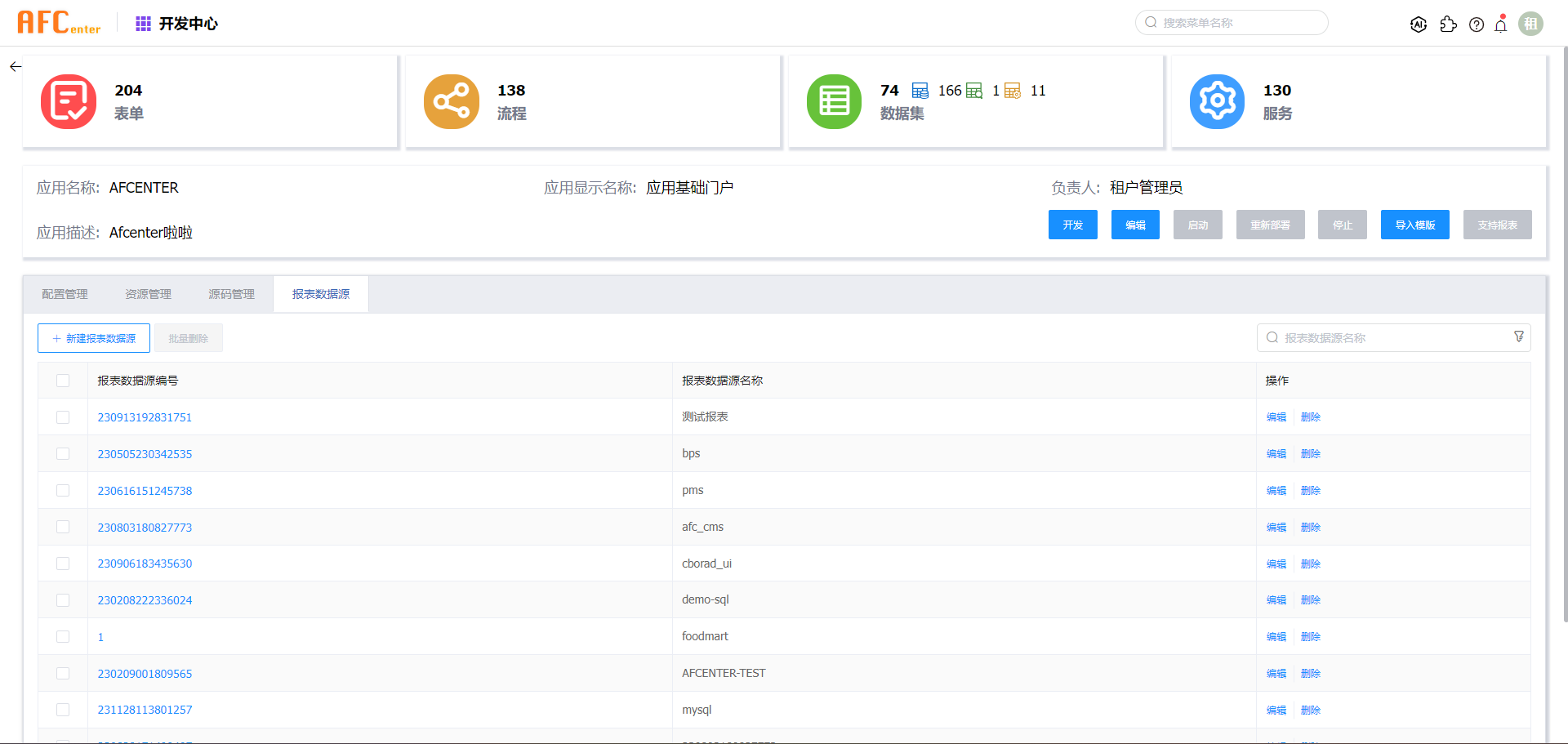

  5. 修改报表对应数据源

    image-20231207150642879

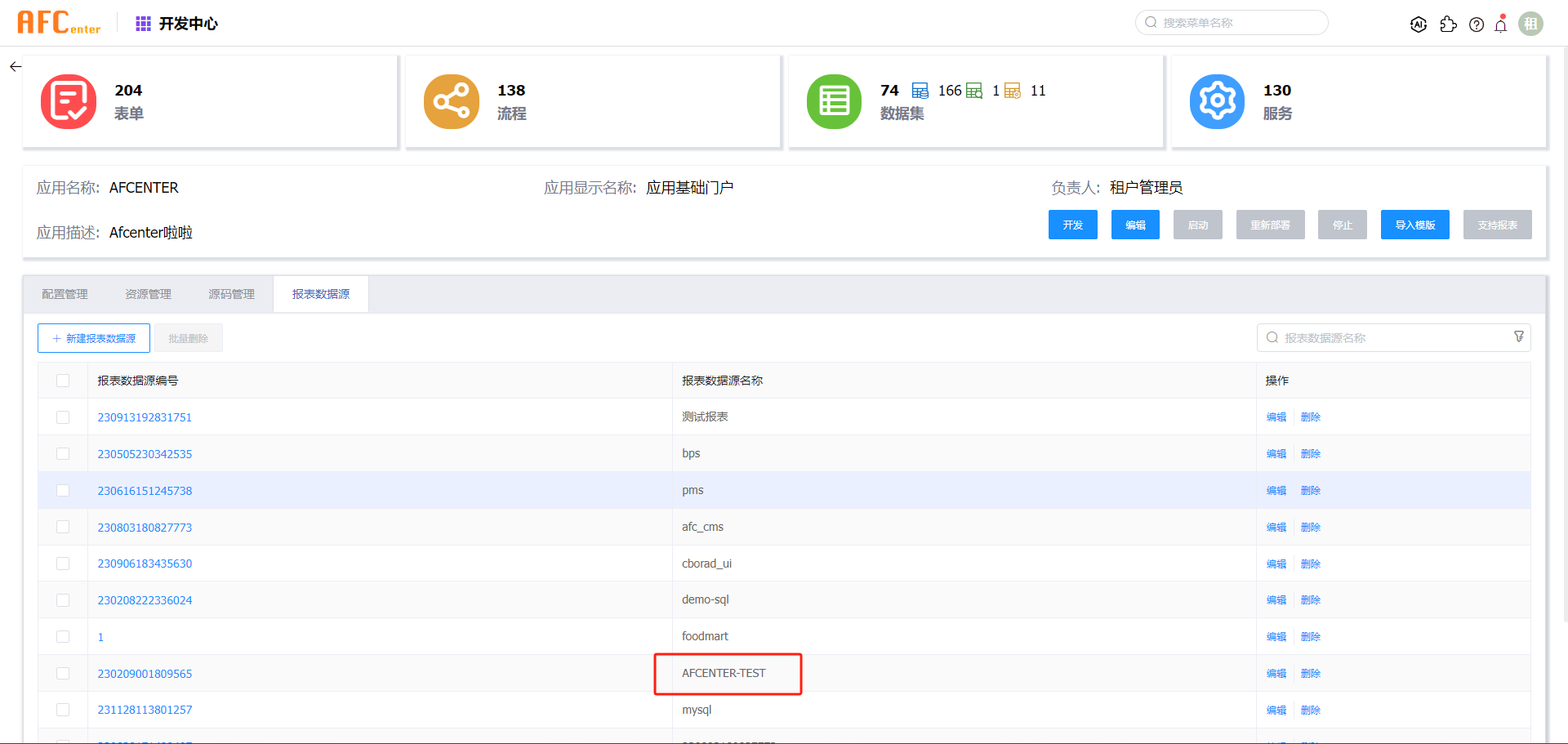

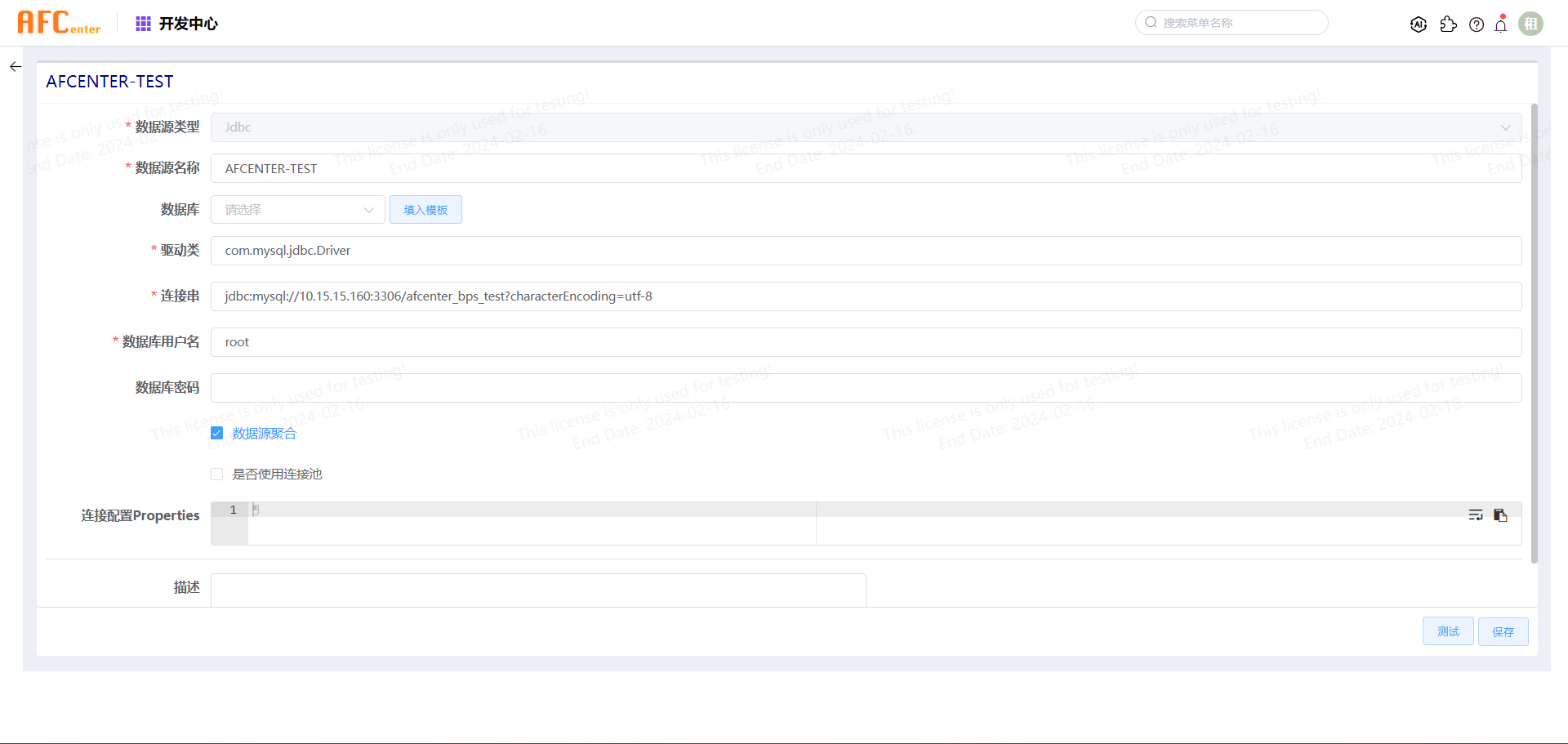

    进入报表数据源，找到名称为AFCENTER-TEST数据源，选择编辑

    image-20231207150809798

    image-20231207150849023

    按照页面提示，修改完数据源后保存即可

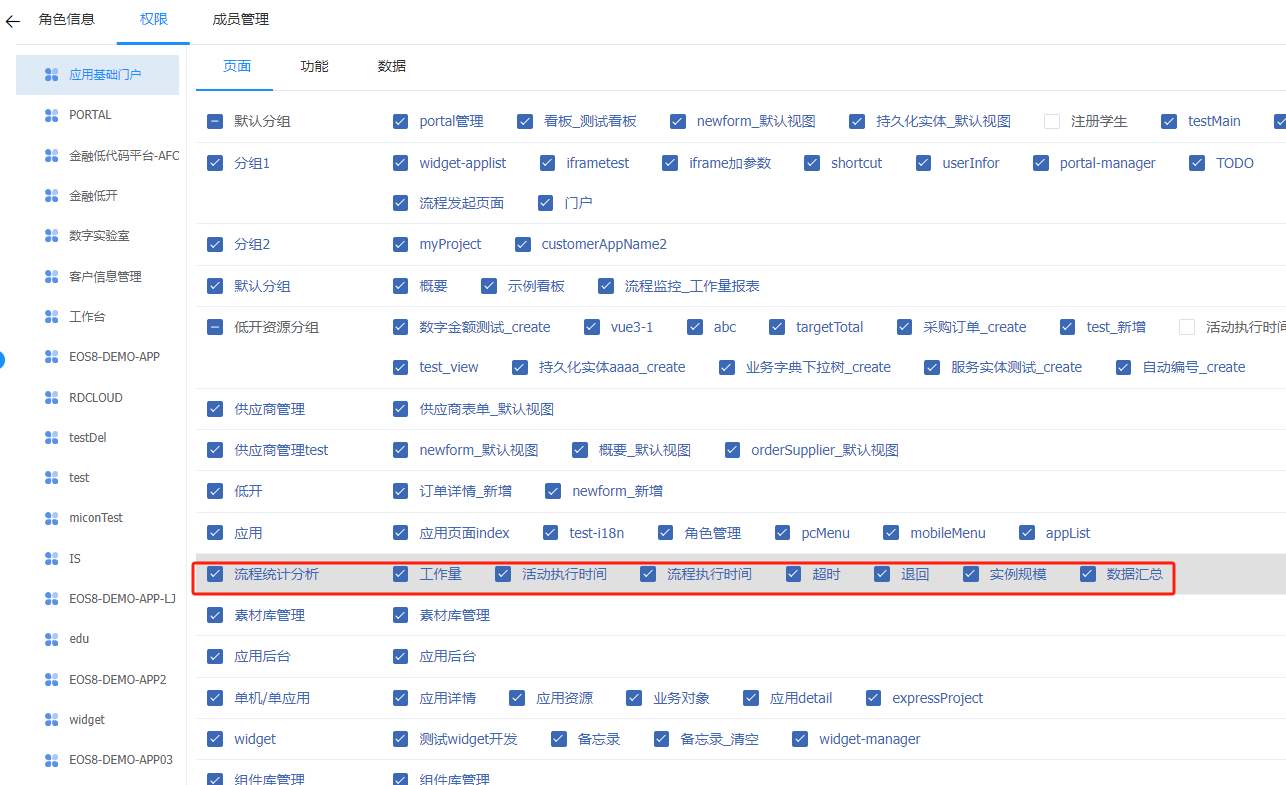

  6. 修改数据源并且初始化完菜单数据后，需要在AFCenter中对需要看到这个菜单的角色授予页面权限即可

image-20231207151235162

  1. 完成后，即可在AFCenter顶部菜单栏看到流程统计分析标签

    image-20231207151340862
