AI连接器扩展

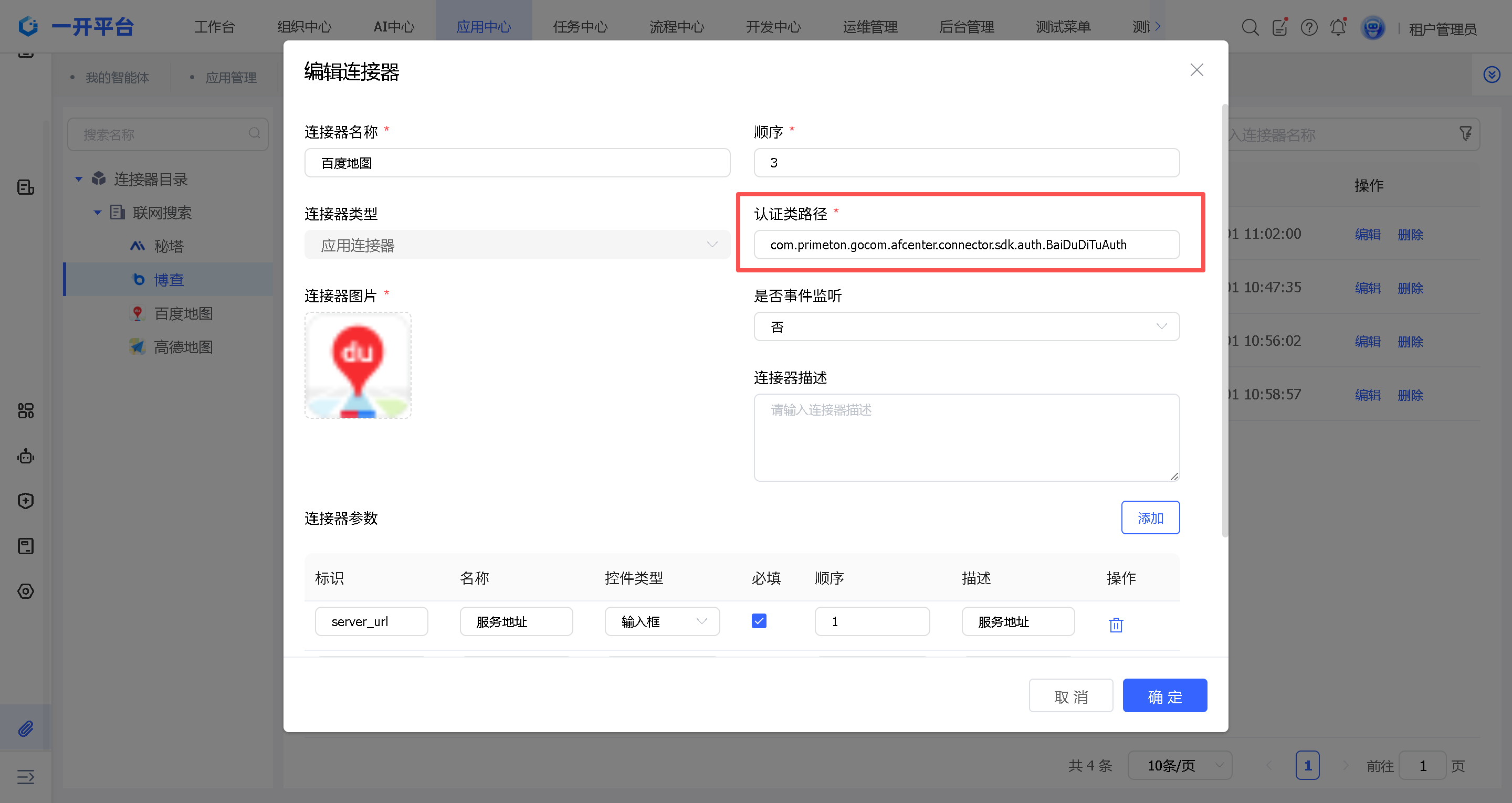

AI连接器中目前内置了秘塔、博查、百度地图、高德地图。如需新增其他连接器可在连接器管理菜单中新增连接器即可，可参考AI连接器。其中新建连接器时，连接器认证类路径参数为需要新建连接器的认证类全类名。例如百度地图认证实现类 com.primeton.gocom.afcenter.connector.sdk.auth.BaiDuDiTuAuth，如下图

实现接口方法

该认证类路径需要自行扩展，实现com.primeton.gocom.afcenter.connector.sdk.api.IConnectorAuth#auth方法即可。

认证方法入参

该接口方法入参为com.primeton.gocom.afcenter.connector.sdk.model.HttpMessage

属性名	类型	说明
actionId	String	连接器操作connectorAction的主键id，用来在认证实现方法中获取连接器操作对象，继而获取相关信息
authId	String	连接器认证connectorAuth的主键id，用来获取连接器认证配置信息，方便实现方法中获取相关认证信息。
pathParams	Map<String, Object>	连接器操作中操作方法的路径参数，根据连接器操作url中存在路径参数时，这里入参获取到pathParams后，根据认证需要组装路径参数到返回结果AuthResult中
queryParams	Map<String, Object>	连接器操作中操作方法的请求参数，根据操作url中请求参数结合连接器认证方式组装queryParams到返回结果AuthResult中
body	Object	post请求body体参数，根据连接器认证需求组装body信息后返回到结果AuthResult中
method	String	连接器操作中操作方法，1-GET，2-POST，3-DELETE，4-PUT，5-PATCH
pathWay	String	连接器操作中操作URL

认证方法出参

该接口方法入参为com.primeton.gocom.afcenter.connector.sdk.model.AuthResult

属性名	类型	说明	是否必须返回
state	int	认证状态，0：成功 1：失败	是
busAddr	String	业务地址，由认证方法auth中从认证参数中获取服务地址拼接连接器操作中操作url得来，例如百度地图认证服务地址为https://api.map.baidu.com，操作坐标转换操作url为/geoconv/v2/，最终busAddr为https://api.map.baidu.com/geoconv/v2/	是
message	String	认证失败异常信息message	否
method	String	业务接口的方法类型 1-GET，2-POST，3-DELETE，4-PUT，5-PATCH	是
pathParams	Map<String,Object>	远程请求连接器接口路径参数	否
headerParams	Map<String,Object>	远程请求连接器接口header请求头信息	否
queryParams	Map<String,Object>	远程请求连接器接口请求参数	否
body	Object	远程请求连接器接口body体入参	否

示例

例如百度地图认证实现类

package com.primeton.gocom.afcenter.connector.sdk.auth;

import com.fasterxml.jackson.databind.JsonNode;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.primeton.eos.api.springboot.EOS8ApplicationContext;
import com.primeton.gocom.afcenter.connector.model.ConnectorAuth;
import com.primeton.gocom.afcenter.connector.model.ConnectorAuthParam;
import com.primeton.gocom.afcenter.connector.model.Result;
import com.primeton.gocom.afcenter.connector.sdk.api.IConnectorAuth;
import com.primeton.gocom.afcenter.connector.sdk.model.AuthResult;
import com.primeton.gocom.afcenter.connector.sdk.model.HttpMessage;
import com.primeton.gocom.afcenter.connector.service.ConnectorAuthService;
import com.primeton.gocom.afcenter.connector.util.SignUtils;
import org.apache.commons.collections4.CollectionUtils;
import org.springframework.stereotype.Component;

import java.net.URLEncoder;
import java.util.*;
import java.util.stream.Collectors;
import java.util.Map.Entry;

/**
 * 百度地图认证实现类
 */
@Component
public class BaiDuDiTuAuth implements IConnectorAuth {
    //以下为验证需要的字段
    private final String SERVER_URL = "server_url"; //应用地址，地址部分
    private final String AK = "ak";  //秘钥
    private final String SK = "sk"; //私钥
    private final String AUTH_TYPE = "auth_type"; //认证方式：IPWhiteList：IP白名单 SNSignature：sn校验

    private final String IPWhiteList = "IPWhiteList"; //认证方式为白名单
    private final String SNSignature = "SNSignature"; //认证方式为 sn校验

    private String ak = null;
    private String sk = null;
    private String server_url = null;
    private String auth_type = null; //认证方式
    private String pathWay = null;

    //get请求的参数字符串
    private String getParamStr = null;
    private byte[] postBodyBytes = null;
    @Override
    public AuthResult auth(HttpMessage httpMessage) {
        AuthResult result = new AuthResult();
        try {
        ConnectorAuthService connectorAuthService = EOS8ApplicationContext.INSTANCE.getBean(ConnectorAuthService.class);
        Result connectorAuthInfoById = connectorAuthService.getConnectorAuthInfoById(httpMessage.getAuthId());
        if(Objects.isNull(connectorAuthInfoById.getData())){
            throw new RuntimeException("找不到对应的认证信息,连接器认证id:"+httpMessage.getAuthId());
        }
        ConnectorAuth connectorAuth = (ConnectorAuth)connectorAuthInfoById.getData();
        //从认证参数中获取配置的参数信息
        List<ConnectorAuthParam> connectorAuthParams = connectorAuth.getConnectorAuthParams();
        if(CollectionUtils.isEmpty(connectorAuthParams)){
            result.setState(1);
            result.setMessage("认证失败，百度地图认证参数未设置");
            return result;
        }
        Map<String, String> authParam = connectorAuthParams.stream().collect(Collectors.toMap(ConnectorAuthParam::getConnectorKey, ConnectorAuthParam::getConnectorValue));
        ak = authParam.get(AK);
        sk = authParam.get(SK);
        server_url = authParam.get(SERVER_URL);
        auth_type = authParam.get(AUTH_TYPE);
        pathWay = httpMessage.getPathWay();
        result.setBusAddr(server_url + pathWay);
        String actionMethod = httpMessage.getMethod();
        result.setMethod(actionMethod);

        TreeMap<String,Object> pathParams = new TreeMap<String,Object>();
        //get请求方式
        if("1".equalsIgnoreCase(actionMethod)){
            Map<String, Object> queryParams = httpMessage.getQueryParams();
            pathParams.putAll(queryParams);
        }else if("2".equalsIgnoreCase(actionMethod)){
            //post请求方式
            Object body = httpMessage.getBody();
            String bodyString = null;
            if (body instanceof byte[]) {
                String oldEncoding = "UTF-8";
                bodyString = new String((byte[])body, oldEncoding);
            }else{
                bodyString = (String) body;
            }
            pathParams = getParamStrByPost(bodyString);
        }
            pathParams.put("ak",ak);
            String sn = "";
            if(SNSignature.equals(auth_type)){
                sn = getSign(pathWay,pathParams,sk);
                getParamStr = getParamStr + "&sn="+sn;
            }else{
                getParamStr = toQueryString(pathParams);
            }
            if("1".equalsIgnoreCase(actionMethod)){
                result.getQueryParams().put("ak",ak);
                result.getQueryParams().put("sn",sn);
            }else if("2".equalsIgnoreCase(actionMethod)){
                postBodyBytes = getParamStr.getBytes("UTF-8");
                result.setBody(postBodyBytes);
                result.getHeaderParams().put("Content-Type", "application/x-www-form-urlencoded");
            }
            result.setState(0);
            result.setMessage("认证成功");
        }catch (Exception e){
            result.setState(1);
            result.setMessage("认证失败："+e.getMessage());
        }
        return result;
    }

    /**
     * 通过原始POST请求参数获取参数集合
     * @param paramStr
     * @return
     */
    private TreeMap<String,Object> getParamStrByPost(String paramStr){
        TreeMap<String,Object> pathParams = new TreeMap<String,Object>();
        if(null != paramStr){
            try{
                ObjectMapper objectMapper = new ObjectMapper();
                JsonNode bodyNode = objectMapper.readTree(paramStr);  // 尝试解析为 JSON
                Iterator<String> fields = bodyNode.fieldNames();
                if (null != fields && fields.hasNext()) {
                    while (fields.hasNext()) {
                        String fieldName = fields.next();
                        JsonNode fieldNode = bodyNode.get(fieldName);
                        String fieldValue = fieldNode.asText();
                        if(fieldNode.isArray() || fieldNode.isObject() || fieldNode.isContainerNode()){
                            fieldValue = fieldNode.toString();
                        }
                        pathParams.put(fieldName,fieldValue);
                    }
                }
            }catch (Exception e){
                e.printStackTrace();
            }
        }
        return pathParams;
    }

    public  String getSign(String pathWay,TreeMap<String,Object> pathParams,String sk)   throws Exception{
        getParamStr = toQueryString(pathParams);
        String sigStr = pathWay + "?" + getParamStr + sk;
        System.out.println("sigStr：" + sigStr);
        // 对上面wholeStr再作utf8编码
        String tempStr = URLEncoder.encode(sigStr, "UTF-8");
        // 调用下面的MD5方法得到最后的sn签名7de5a22212ffaa9e326444c75a58f9a0
        return SignUtils.md5(tempStr);
    }

    /**
     * 对Map内所有value作utf8编码，拼接返回结果
     */
    public static String toQueryString(Map<?, ?> data)  throws Exception {
        StringBuffer queryString = new StringBuffer();
        for (Entry<?, ?> pair : data.entrySet()) {
            queryString.append(pair.getKey() + "=");
            //判断是否经过了encode
            String value = pair.getValue().toString();
            if(SignUtils.isEncoded(value)){
                queryString.append(value + "&");
            }else{
                queryString.append(URLEncoder.encode(pair.getValue().toString(), "UTF-8") + "&");
            }
        }
        if (queryString.length() > 0) {
            queryString.deleteCharAt(queryString.length() - 1);
        }
        return queryString.toString();
    }

}
