# MaxCompute多表数据同步示例

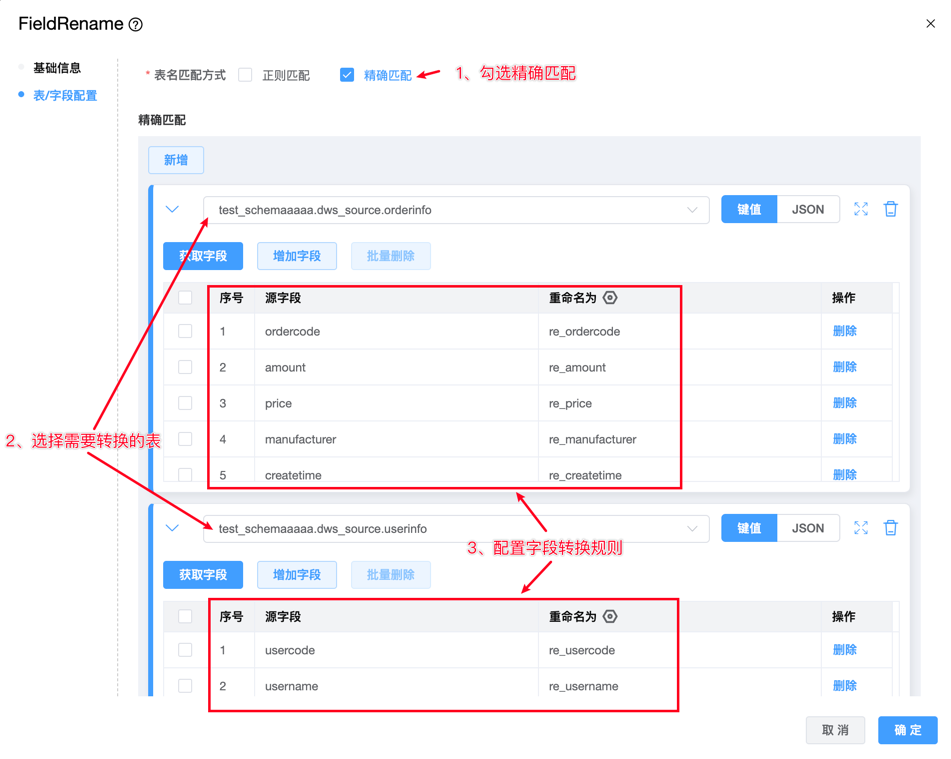

本示例主要演示从MaxCompute源库中读取两张表userinfo、orderinfo的数据，通过转换组件FieldRename组件重命名字段名称，将数据写入MaxCompute目标库表中。

注意:
FieldRename组件重命名字段名称，对于目标端表添加模式开启自动建表时有效。

主要步骤如下：

准备数据
新建同步作业

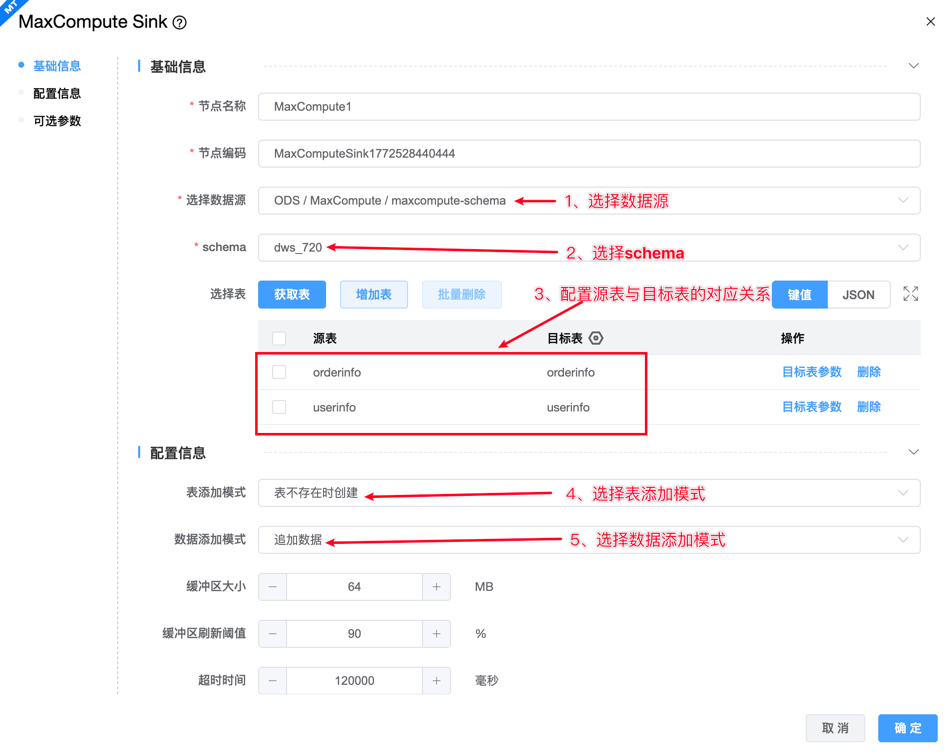

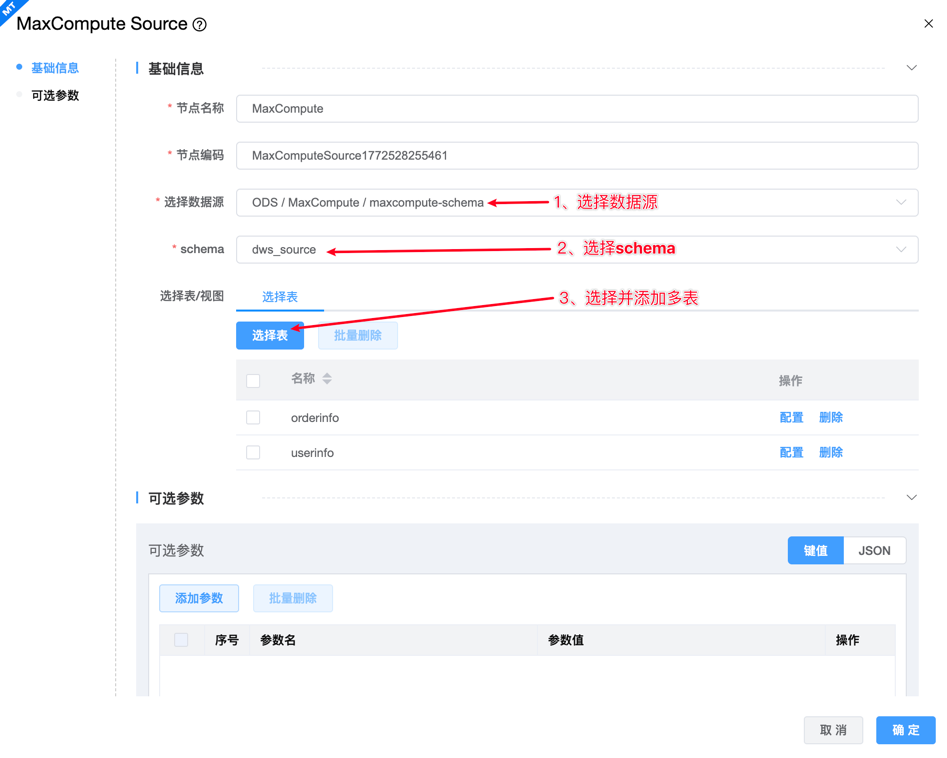

拖拽图元

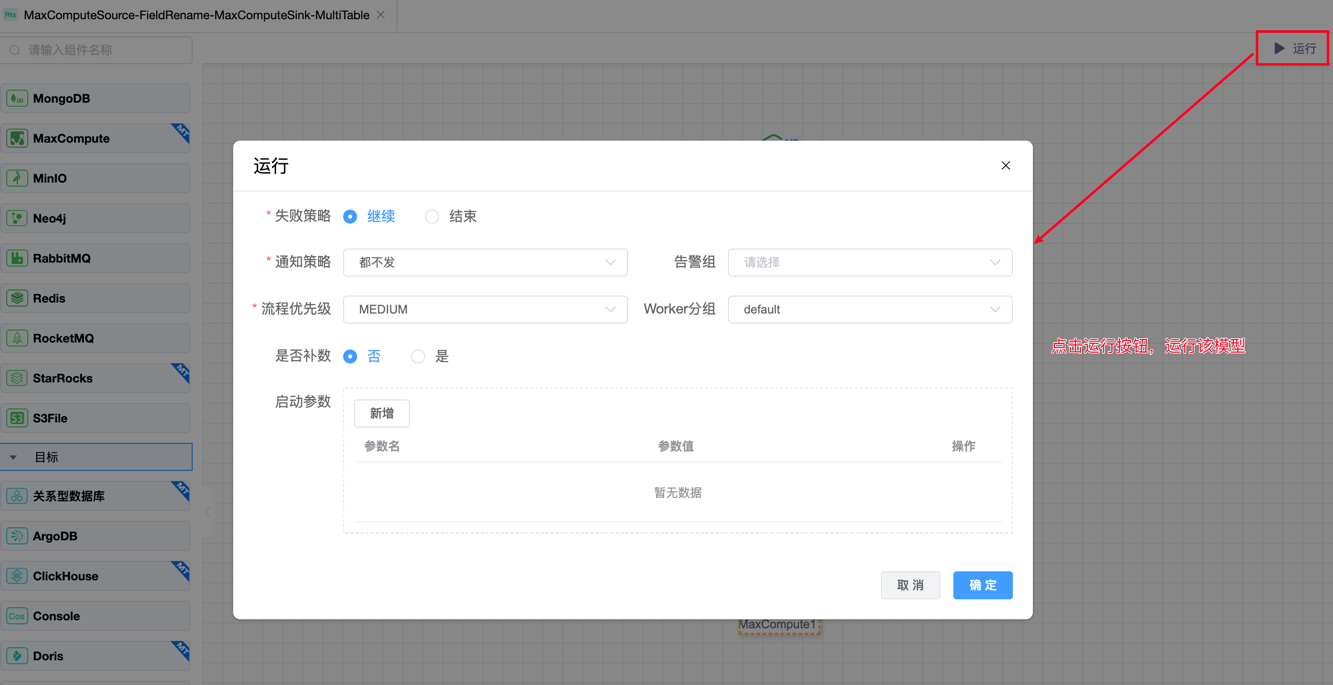

运行

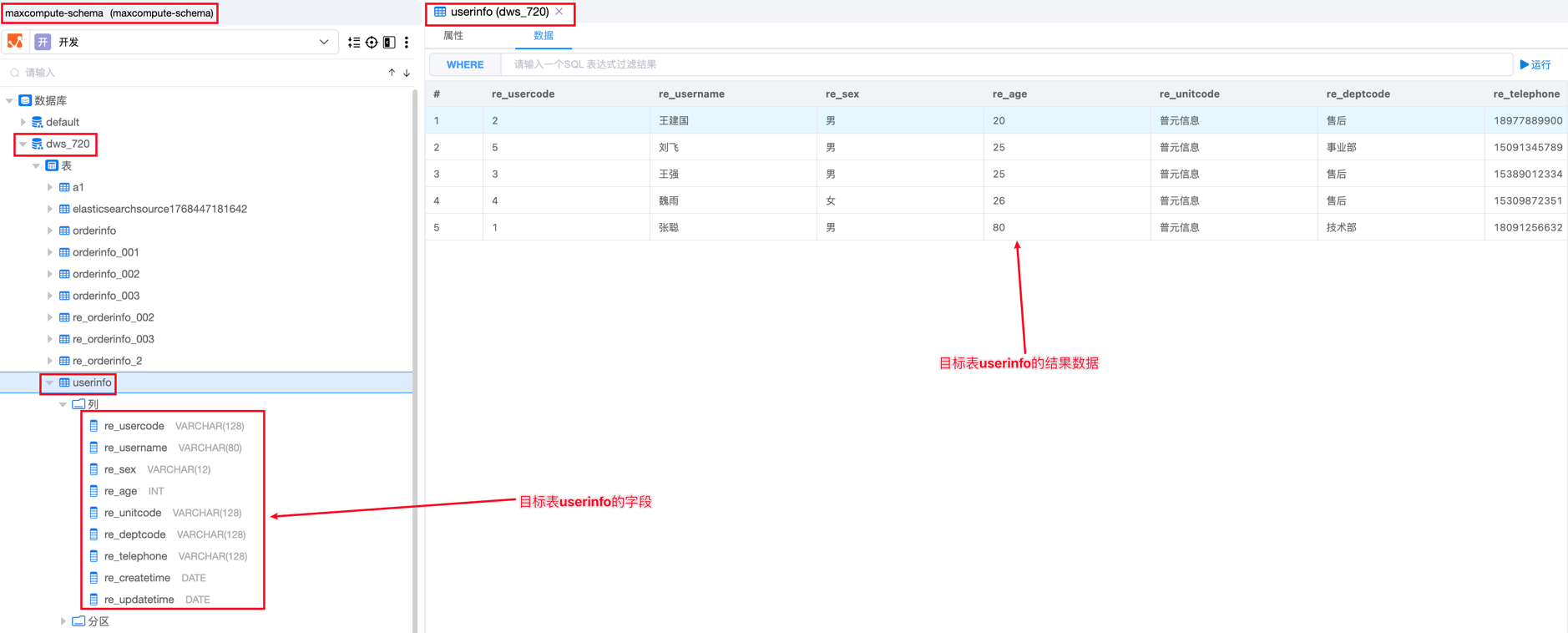

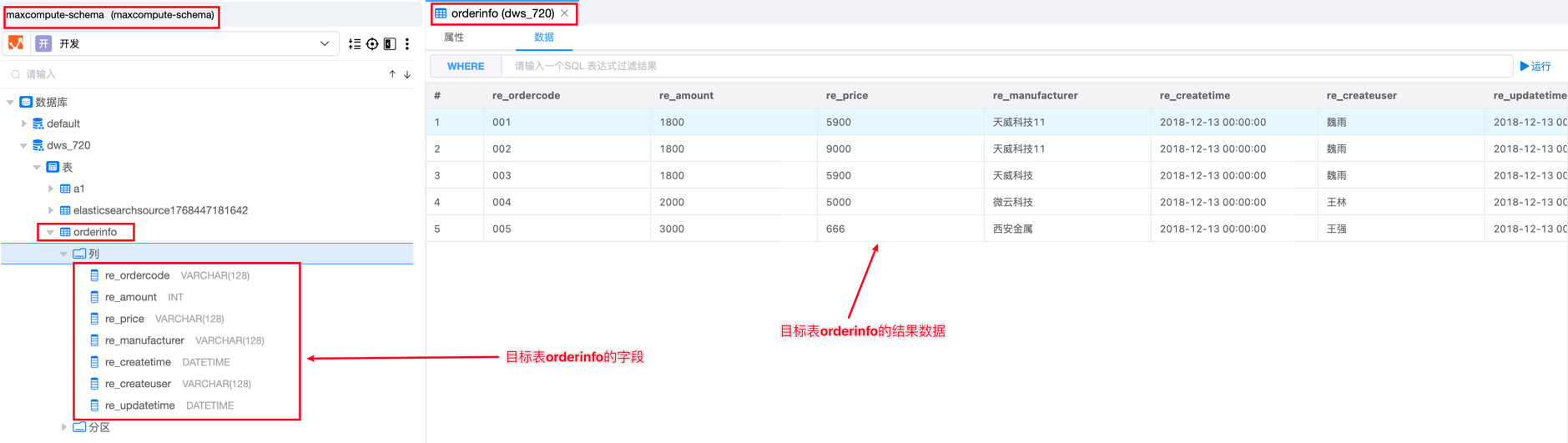

查看数据

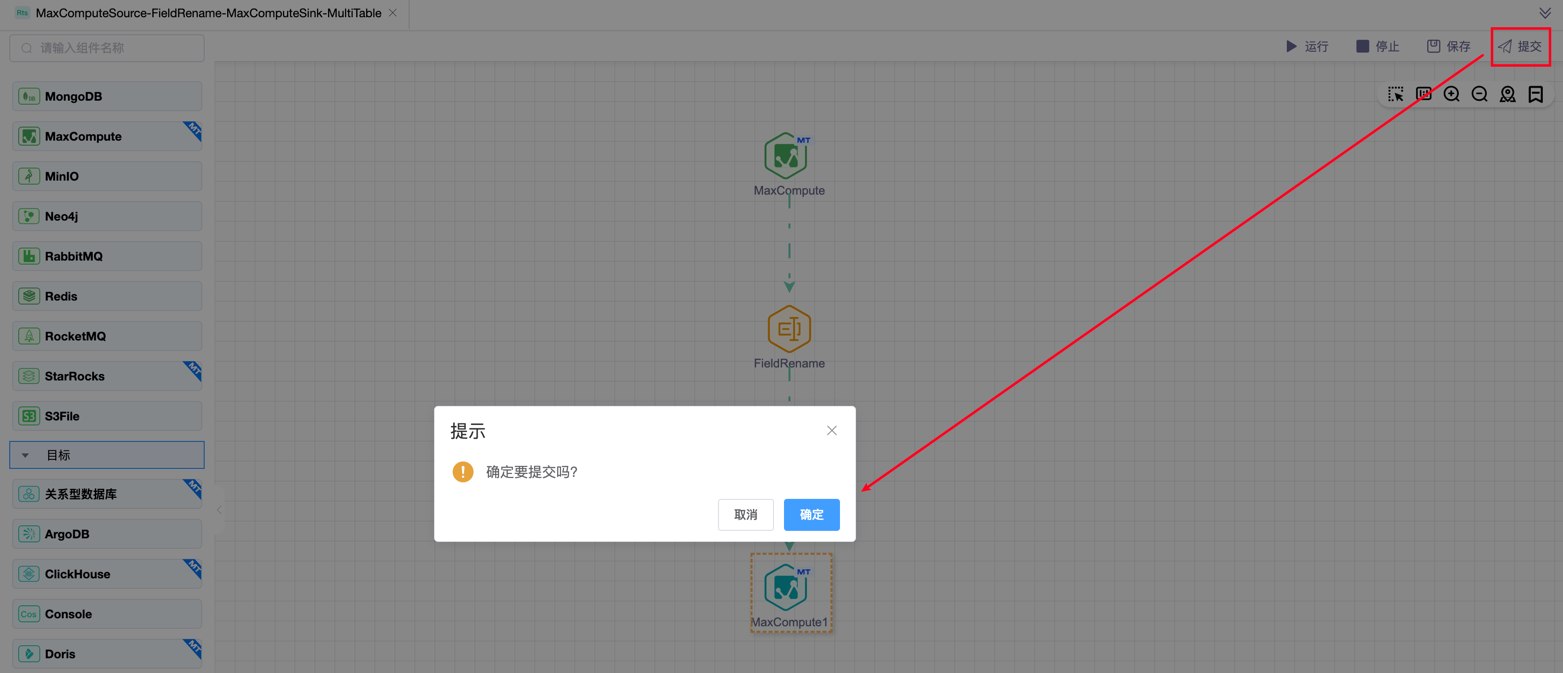

提交版本

# 准备数据

创建表 userinfo 和 userinfo 作为源表，并给源表 INSERT 一些数据。

DROP TABLE IF EXISTS dws_source.orderinfo;

-- ---------------------------------------
-- Table structure for orderinfo
-- ---------------------------------------

CREATE TABLE dws_source.orderinfo (
	ordercode varchar(32),
	amount INT,
	price varchar(32),
	manufacturer varchar(32),
	createtime DATETIME,
	createuser varchar(32),
	updatetime DATETIME
);

-- ----------------------------
-- Records of orderinfo
-- ----------------------------

INSERT INTO dws_source.orderinfo
(ordercode, amount, price, manufacturer, createtime, createuser, updatetime)
VALUES('001', 1800, '5900', '天威科技11', CAST('2018-12-13 08:00:00' AS DATETIME), '魏雨', CAST('2018-12-13 08:00:00' AS DATETIME));
INSERT INTO dws_source.orderinfo
(ordercode, amount, price, manufacturer, createtime, createuser, updatetime)
VALUES('002', 1800, '9000', '天威科技11', CAST('2018-12-13 08:00:00' AS DATETIME), '魏雨', CAST('2018-12-13 08:00:00' AS DATETIME));
INSERT INTO dws_source.orderinfo
(ordercode, amount, price, manufacturer, createtime, createuser, updatetime)
VALUES('003', 1800, '5900', '天威科技', CAST('2018-12-13 08:00:00' AS DATETIME), '魏雨', CAST('2018-12-13 08:00:00' AS DATETIME));
INSERT INTO dws_source.orderinfo
(ordercode, amount, price, manufacturer, createtime, createuser, updatetime)
VALUES('004', 2000, '5000', '微云科技', CAST('2018-12-13 08:00:00' AS DATETIME), '王林', CAST('2018-12-13 08:00:00' AS DATETIME));
INSERT INTO dws_source.orderinfo
(ordercode, amount, price, manufacturer, createtime, createuser, updatetime)
VALUES('005', 3000, '666', '西安金属', CAST('2018-12-13 08:00:00' AS DATETIME), '王强', CAST('2018-12-13 08:00:00' AS DATETIME));


-- ---------------------------------------
-- Table structure for userinfo
-- ---------------------------------------
DROP TABLE IF EXISTS dws_source.userinfo;
CREATE TABLE dws_source.userinfo (
    usercode varchar(32),
    username varchar(20),
    sex char(3),
    age INT,
    unitcode varchar(32),
    deptcode varchar(32),
    telephone varchar(32),
    createtime Date,
    updatetime Date
);

-- ----------------------------
-- Records of userinfo
-- ----------------------------

INSERT INTO dws_source.userinfo
(usercode, username, sex, age, unitcode, deptcode, telephone, createtime, updatetime)
VALUES('2', '王建国', '男', 20, '普元信息', '售后', '18977889900', CAST('2018-12-13' AS DATE), CAST('2018-12-13' AS DATE));
INSERT INTO dws_source.userinfo
(usercode, username, sex, age, unitcode, deptcode, telephone, createtime, updatetime)
VALUES('5', '刘飞', '男', 25, '普元信息', '事业部', '15091345789', CAST('2018-12-13' AS DATE), CAST('2018-12-13' AS DATE));
INSERT INTO dws_source.userinfo
(usercode, username, sex, age, unitcode, deptcode, telephone, createtime, updatetime)
VALUES('3', '王强', '男', 25, '普元信息', '售后', '15389012334', CAST('2018-12-13' AS DATE), CAST('2018-12-13' AS DATE));
INSERT INTO dws_source.userinfo
(usercode, username, sex, age, unitcode, deptcode, telephone, createtime, updatetime)
VALUES('4', '魏雨', '女', 26, '普元信息', '售后', '15309872351', CAST('2018-12-13' AS DATE), CAST('2018-12-13' AS DATE));
INSERT INTO dws_source.userinfo
(usercode, username, sex, age, unitcode, deptcode, telephone, createtime, updatetime)
VALUES('1', '张聪', '男', 80, '普元信息', '技术部', '18091256632', CAST('2018-12-13' AS DATE), CAST('2018-12-13' AS DATE));
