# Hive分区表数据同步示例

本示例主要演示从Hive源库中读取分区表dim_product的分区数据，将数据写入Hive目标库的分区表中。

主要步骤如下：

准备数据

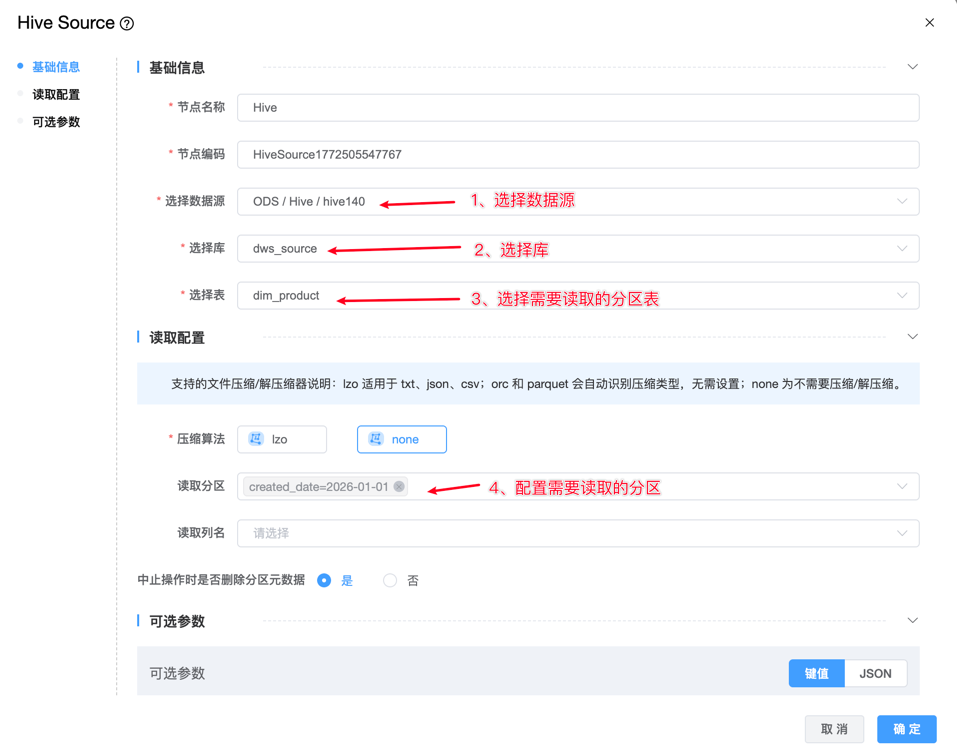

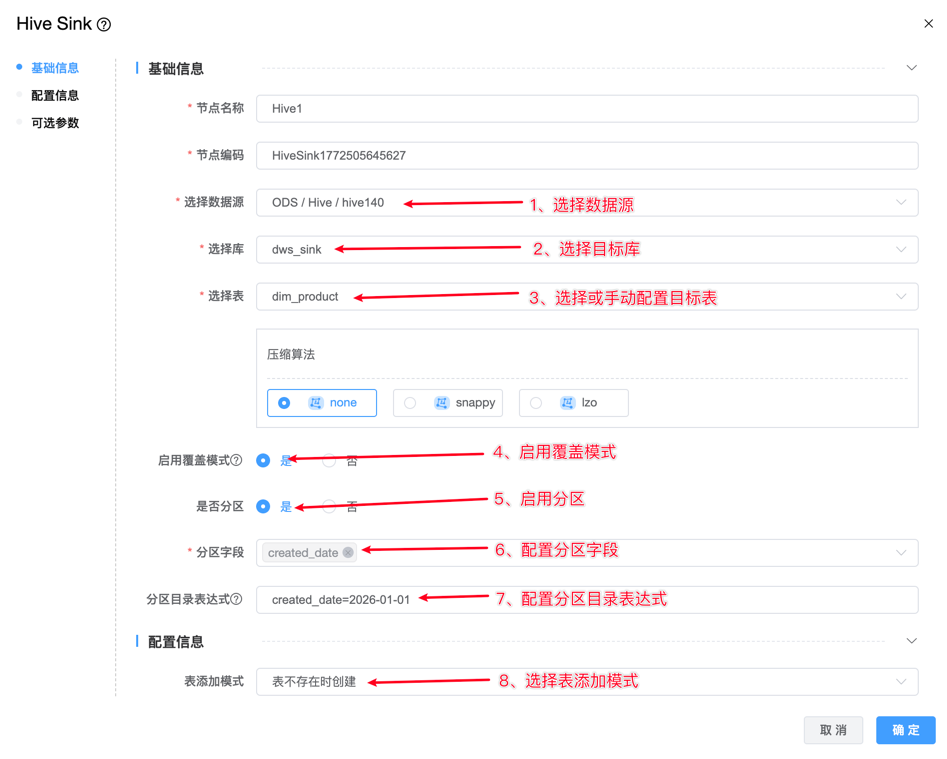

新建同步作业
拖拽图元

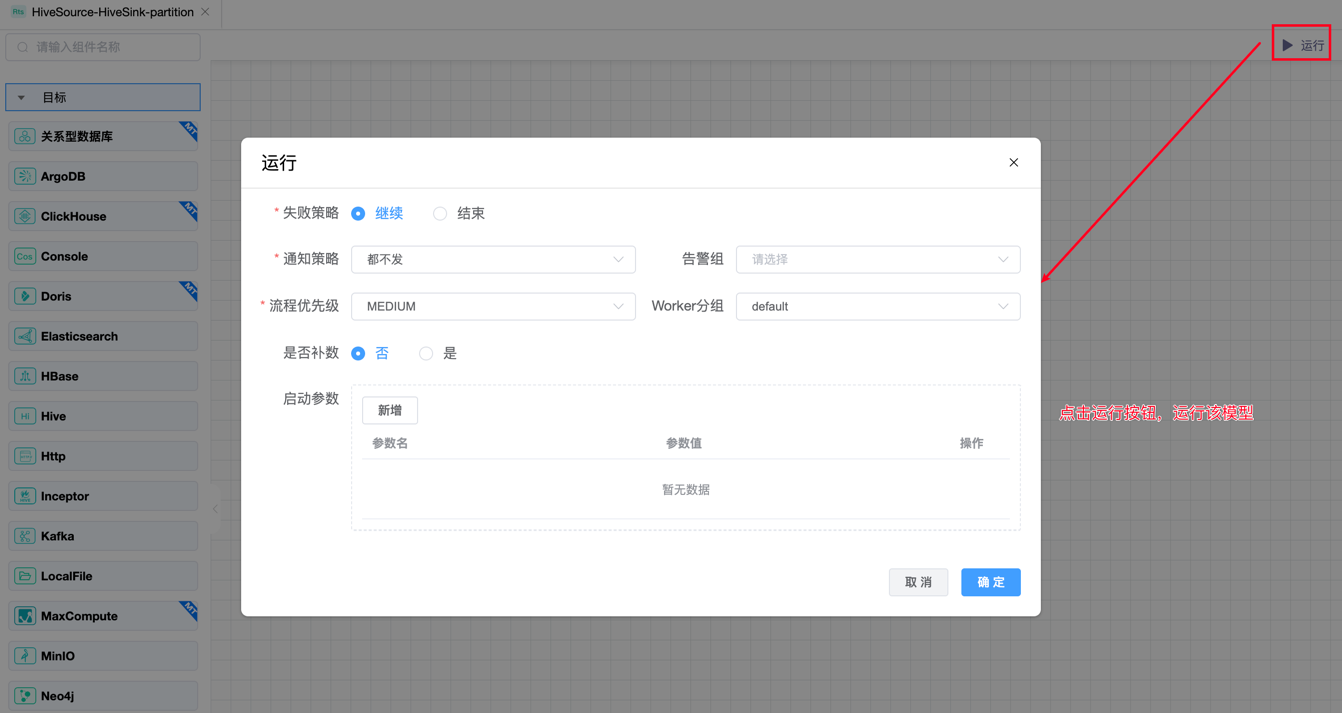

运行

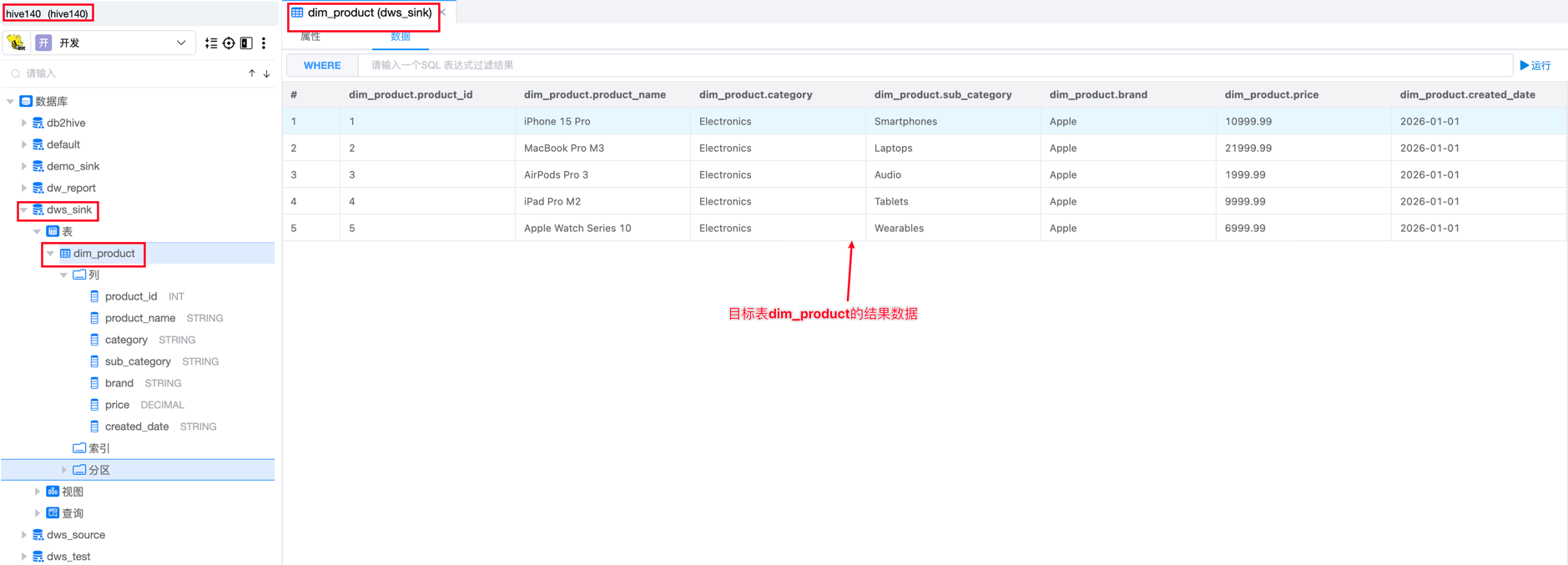

查看数据

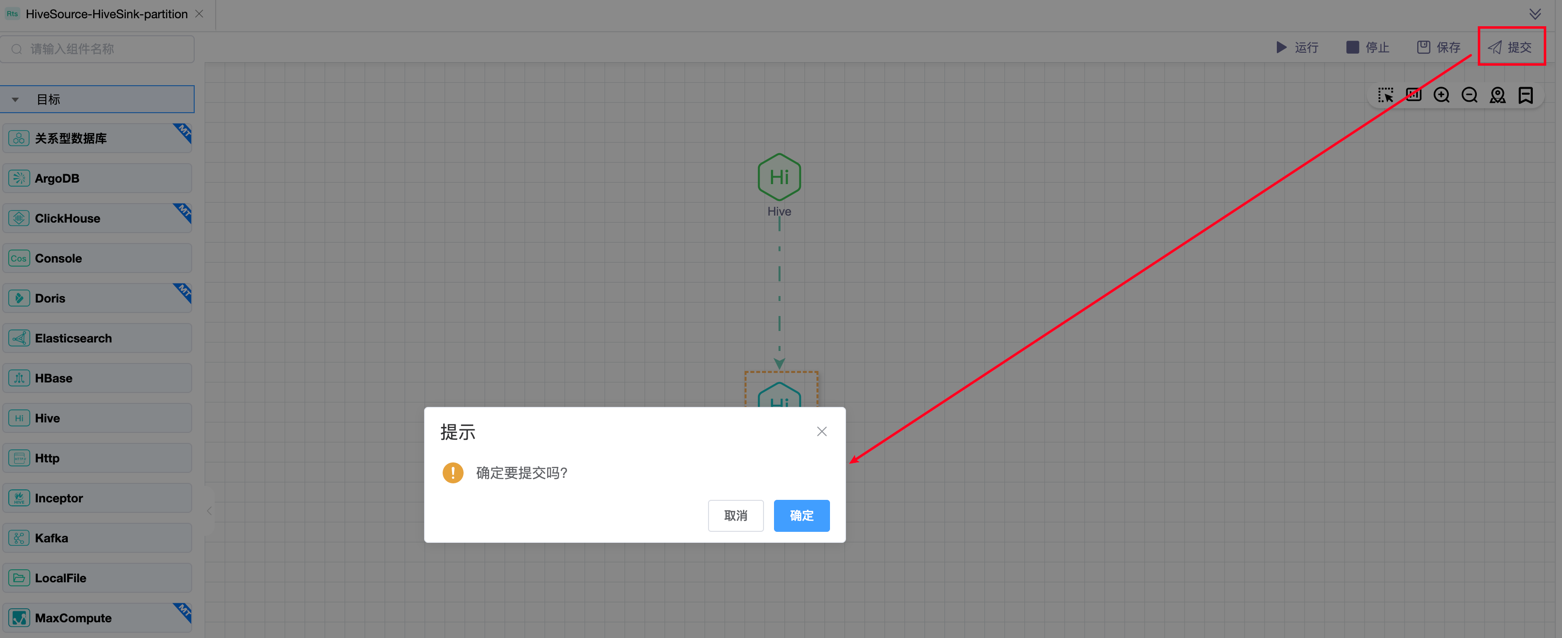

提交版本

# 准备数据

创建数据库dws_source作为源库

CREATE DATABASE IF NOT EXISTS dws_source;

创建分区表dim_product作为源表，分区字段为“created_date”，并给源表 INSERT 一些数据。


DROP TABLE IF EXISTS dws_source.`dim_product`;

-- ---------------------------------------
-- Table structure for dim_product
-- ---------------------------------------

CREATE TABLE `dws_source`.`dim_product`(
  `product_id` int COMMENT '',
  `product_name` varchar(400) COMMENT '',
  `category` varchar(200) COMMENT '',
  `sub_category` varchar(200) COMMENT '',
  `brand` varchar(200) COMMENT '',
  `price` decimal(10,2) COMMENT '')
PARTITIONED BY (
  `created_date` string)
;

-- ----------------------------
-- Records of dim_product
-- ----------------------------

-- 插入5条数据到2026-01-01分区示例

INSERT INTO TABLE dws_source.dim_product PARTITION (created_date='2026-01-01')
VALUES (1, 'iPhone 15 Pro', 'Electronics', 'Smartphones', 'Apple', 10999.99);

INSERT INTO TABLE dws_source.dim_product PARTITION (created_date='2026-01-01')
VALUES (2, 'MacBook Pro M3', 'Electronics', 'Laptops', 'Apple', 21999.99);

INSERT INTO TABLE dws_source.dim_product PARTITION (created_date='2026-01-01')
VALUES (3, 'AirPods Pro 3', 'Electronics', 'Audio', 'Apple', 1999.99);

INSERT INTO TABLE dws_source.dim_product PARTITION (created_date='2026-01-01')
VALUES (4, 'iPad Pro M2', 'Electronics', 'Tablets', 'Apple', 9999.99);

INSERT INTO TABLE dws_source.dim_product PARTITION (created_date='2026-01-01')
VALUES (5, 'Apple Watch Series 10', 'Electronics', 'Wearables', 'Apple', 6999.99);

-- 插入5条数据到default分区示例

INSERT INTO TABLE dws_source.dim_product PARTITION (created_date='default')
VALUES (6, 'Samsung Galaxy S24 Ultra', 'Electronics', 'Smartphones', 'Samsung', 9999.99);

INSERT INTO TABLE dws_source.dim_product PARTITION (created_date='default')
VALUES (7, 'Samsung Galaxy Tab S10 Ultra', 'Electronics', 'Tablets', 'Samsung', 8999.99);

INSERT INTO TABLE dws_source.dim_product PARTITION (created_date='default')
VALUES (8, 'Samsung Galaxy Watch 6 Pro', 'Electronics', 'Wearables', 'Samsung', 3299.99);

INSERT INTO TABLE dws_source.dim_product PARTITION (created_date='default')
VALUES (9, 'Samsung Galaxy Buds 4 Pro', 'Electronics', 'Audio', 'Samsung', 1499.99);

INSERT INTO TABLE dws_source.dim_product PARTITION (created_date='default')
VALUES (10, 'Samsung Galaxy Book 4 Ultra', 'Electronics', 'Laptops', 'Samsung', 17999.99);
