# 第三方工具API集成

# 环境准备

参考开发环境搭建

# 第三方工具集成开发

# 新建项目

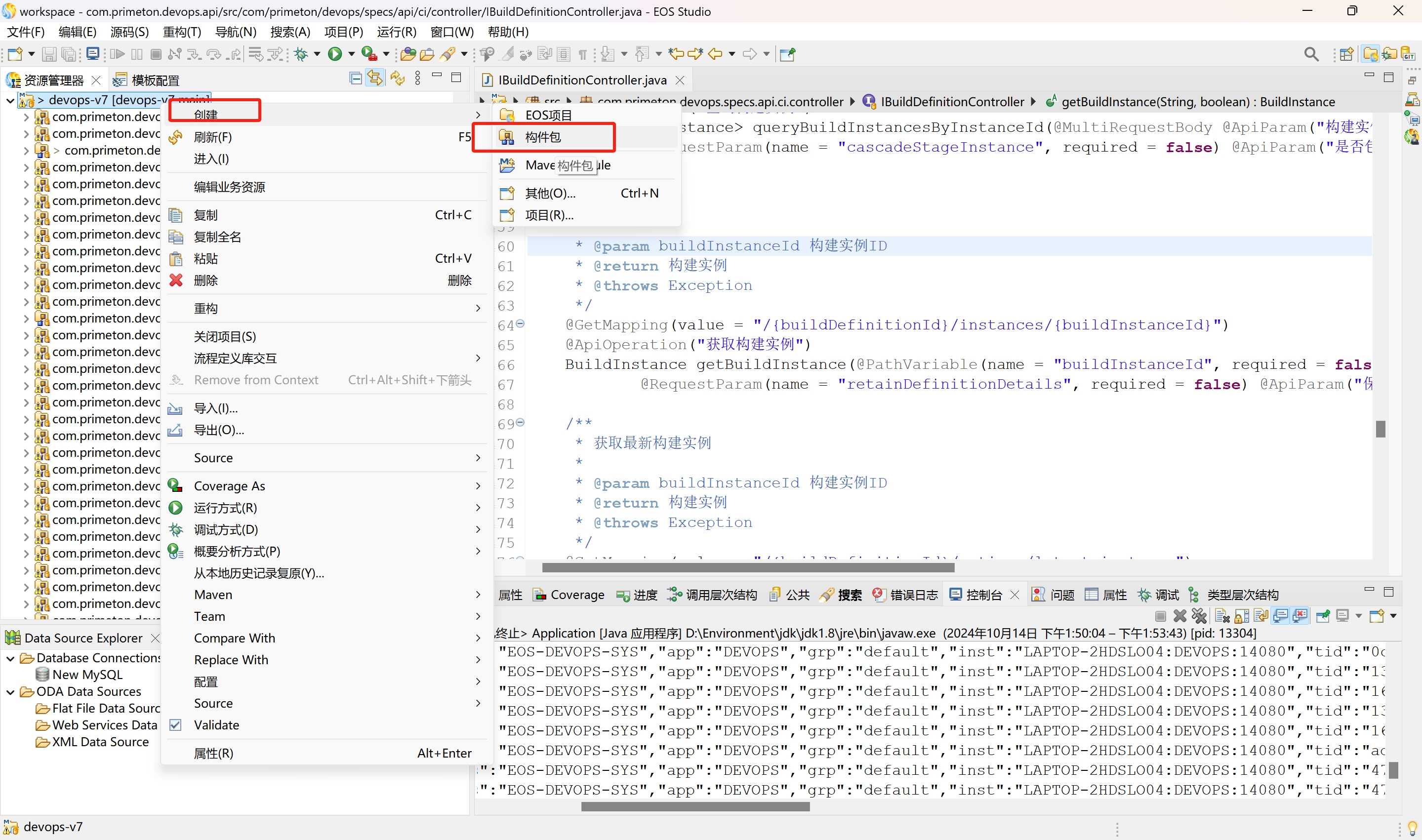

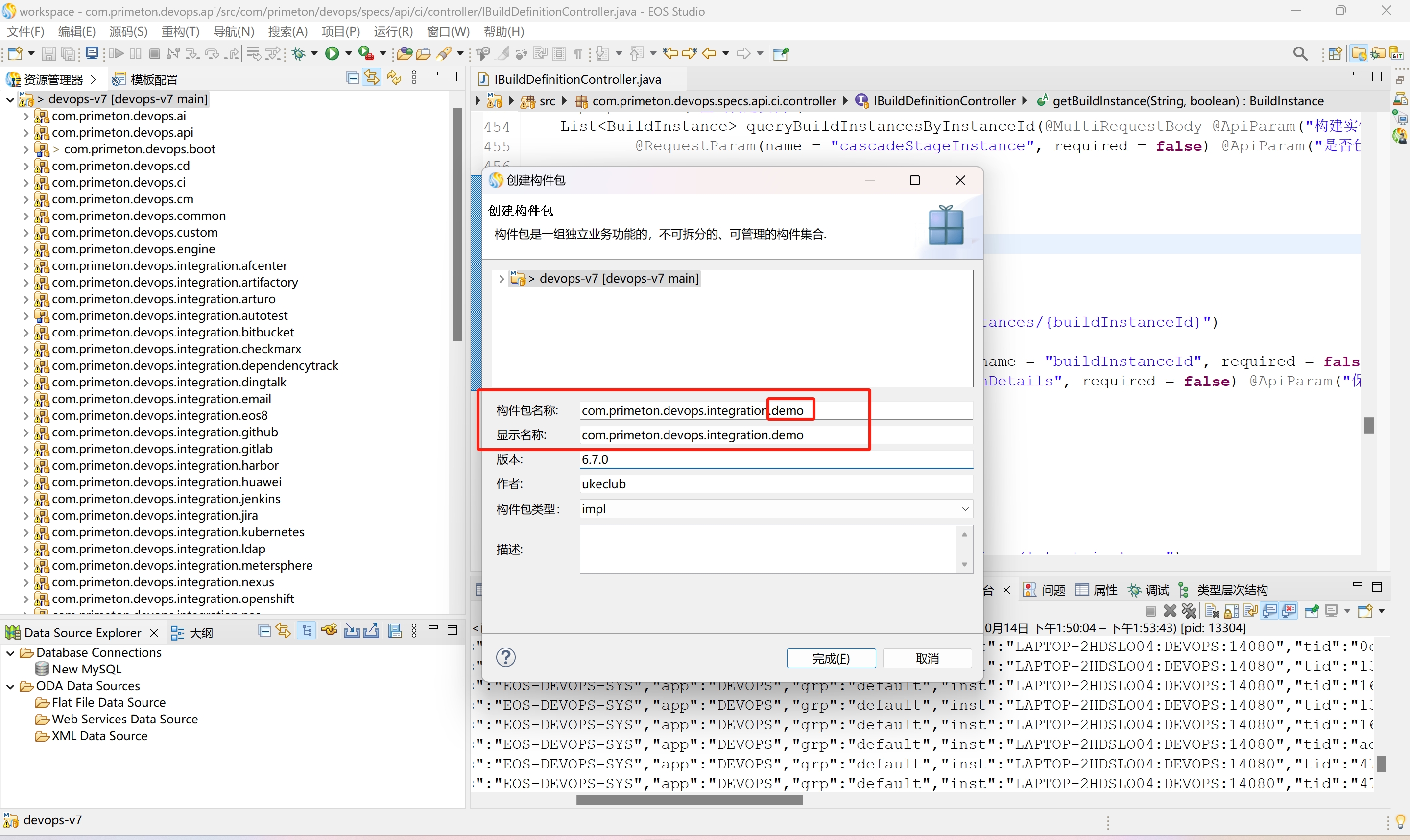

DevOps项目右键》创建》构建包

更新构建包名，显示名，版本号

eg.

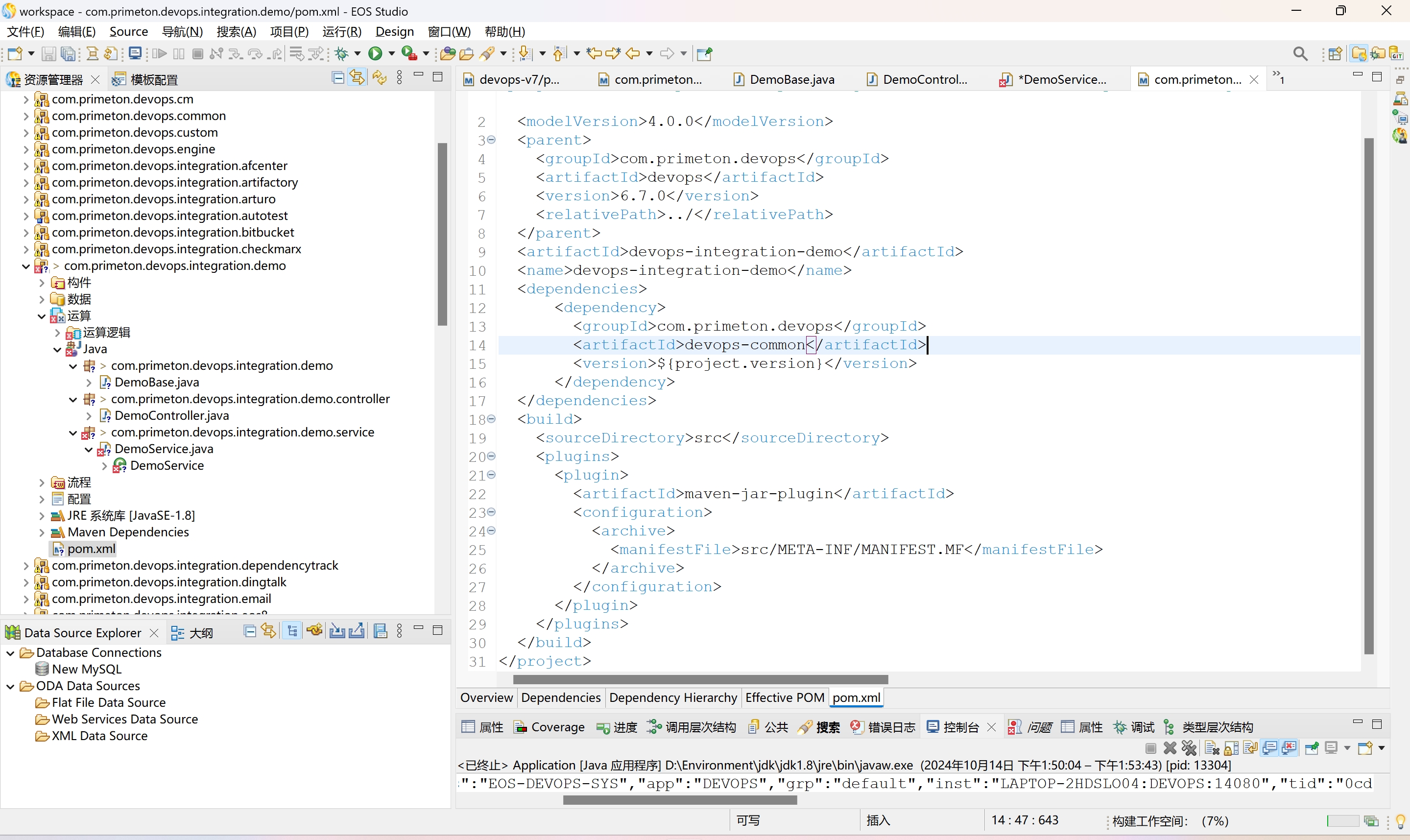

在新建的项目中更新 pom.xml 文件内容重命名 pom.xml 中对应的属性注释的信息为原格式（注释信息不需要保留，请自行删除），改为新内容

为了下文演示代码不报错 可以添加common模块和api模块
<dependencies>
  <dependency>
    <groupId>com.primeton.devops</groupId>
    <artifactId>devops-common</artifactId>
    <version>${project.version}</version>
  </dependency>
  <dependency>
    <groupId>com.primeton.devops</groupId>
    <artifactId>devops-api</artifactId>
    <version>${project.version}</version>
  </dependency>
</dependencies>

eg.

'com.primeton.devops.integration.demo'->'devops-integration-demo'

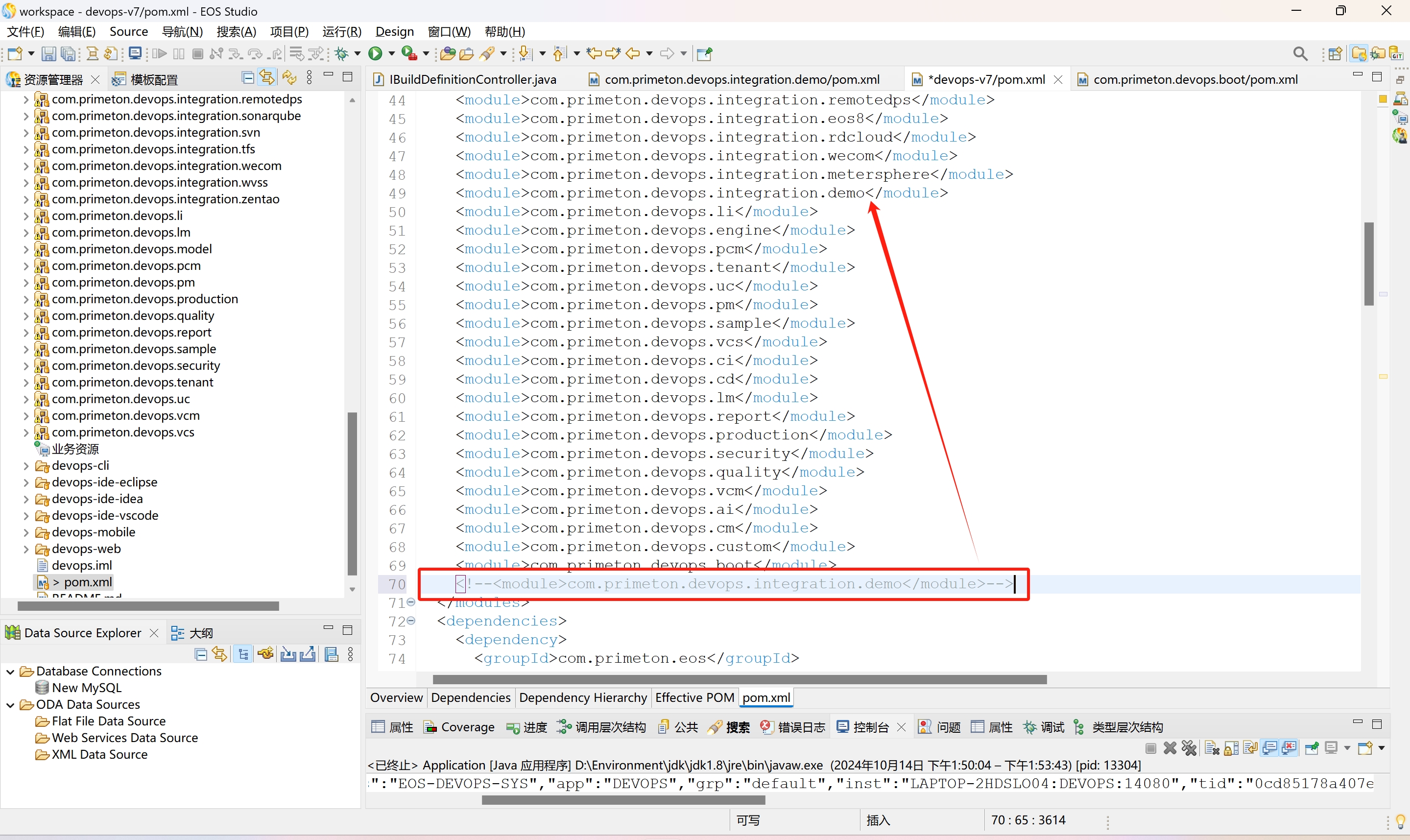

更新主项目 pom.xml 中新项目位置保证构建顺序政策

eg.

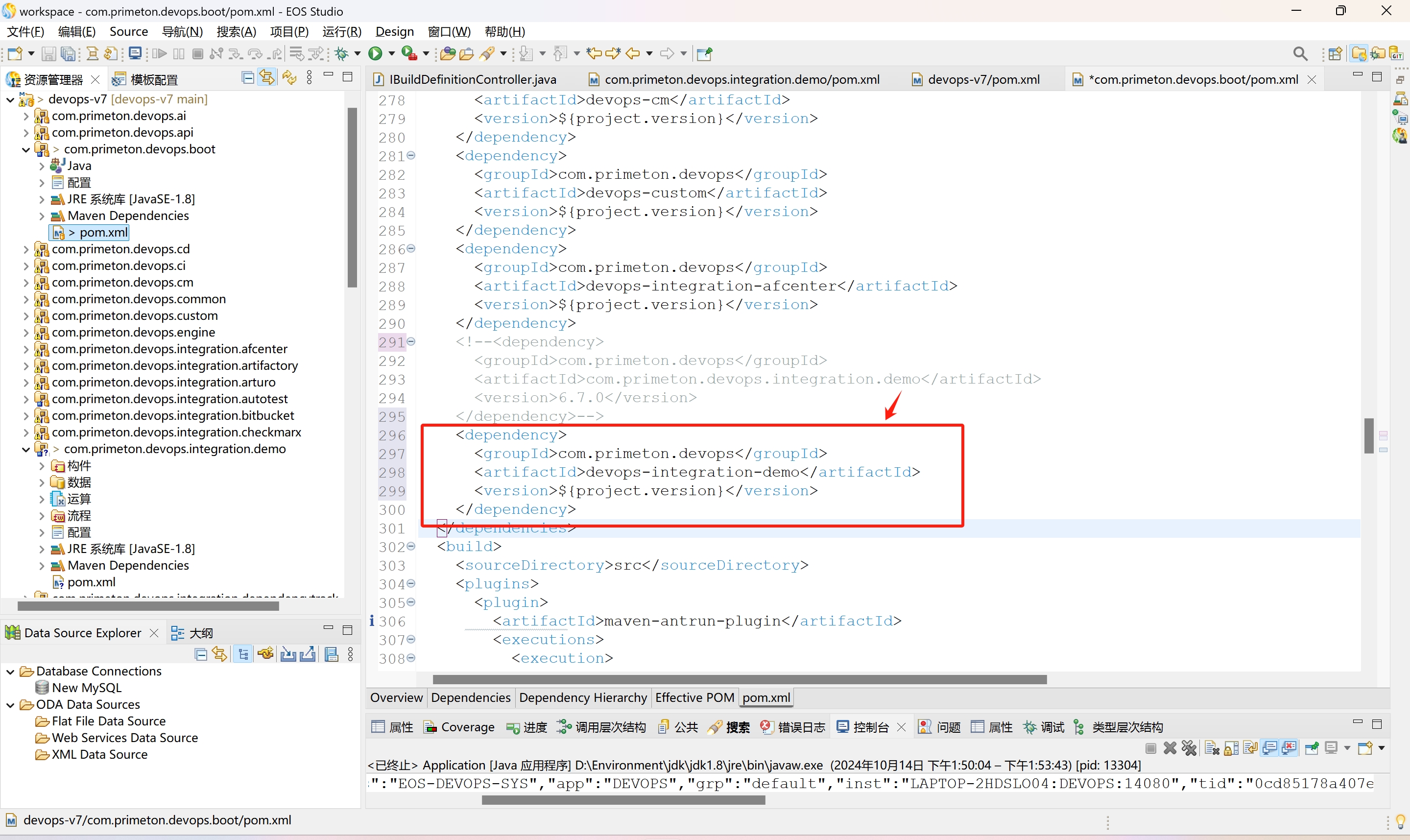

更新boot启动项目 pom.xml 中新项目依赖信息

eg.

<!--<dependency>
  <groupId>com.primeton.devops</groupId>
  <artifactId>com.primeton.devops.integration.demo</artifactId>
  <version>6.7.0</version>
</dependency>-->
更新为下方代码
<dependency>
  <groupId>com.primeton.devops</groupId>
  <artifactId>devops-integration-demo</artifactId>
  <version>${project.version}</version>
</dependency>

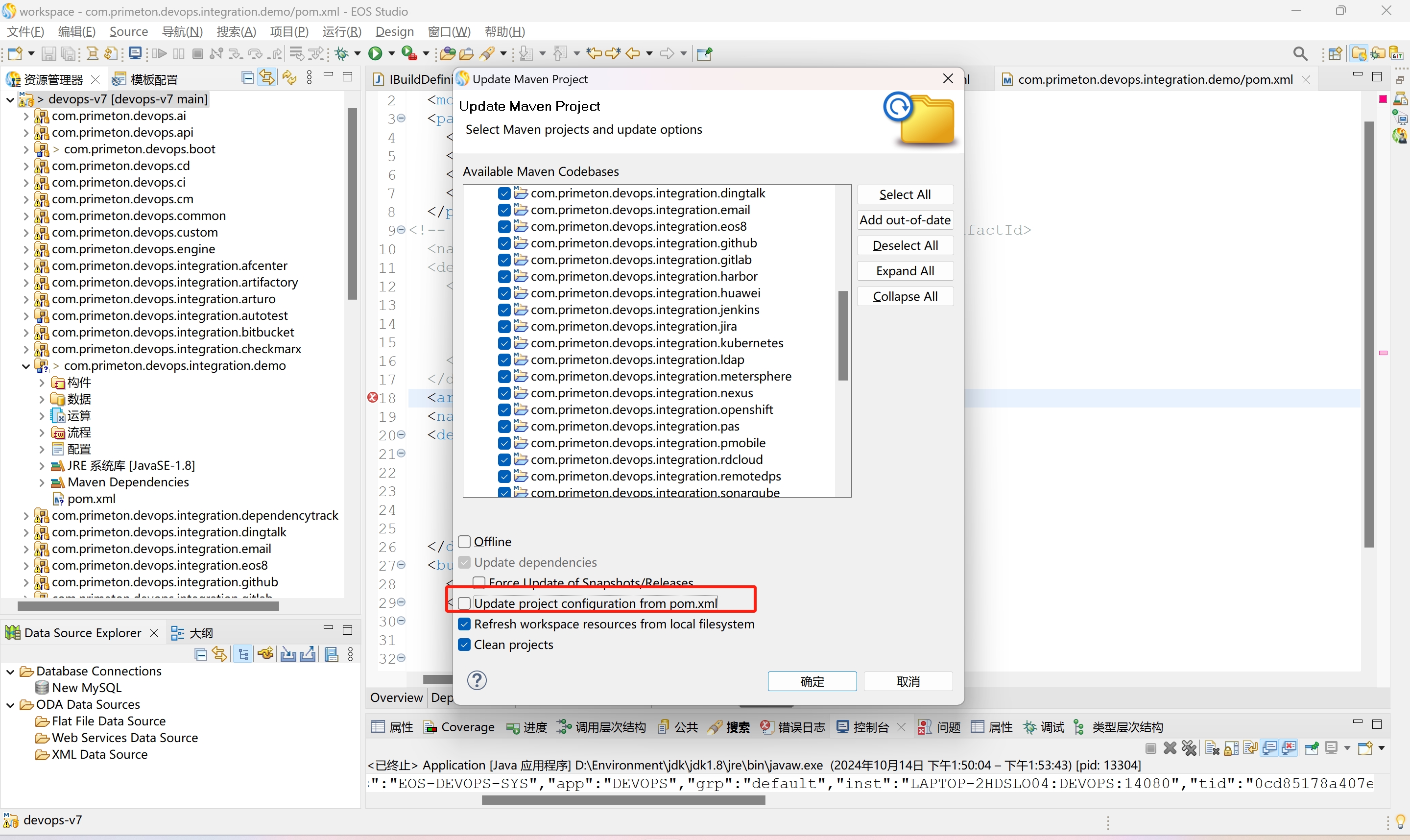

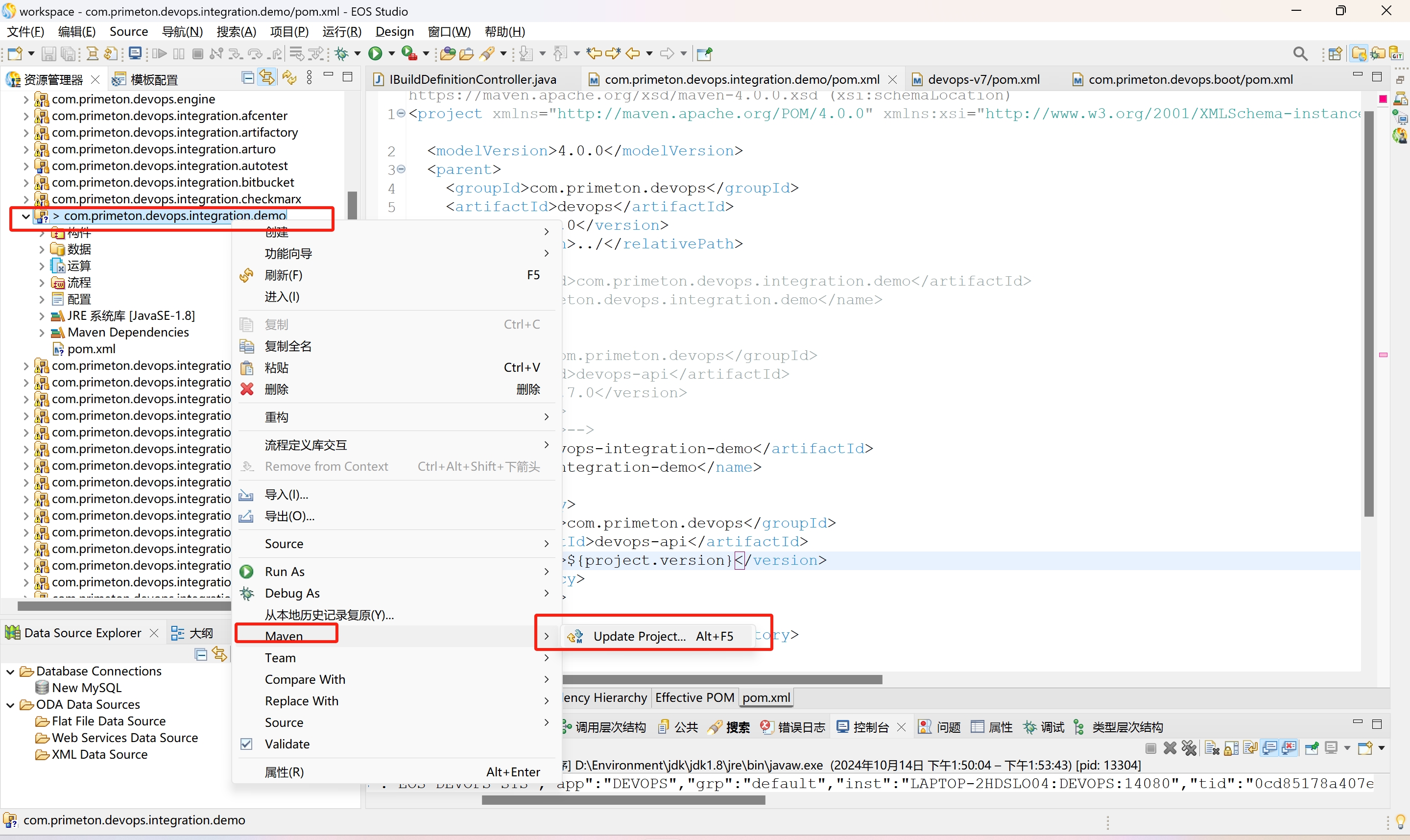

更新maven依赖

# 后端集成开发

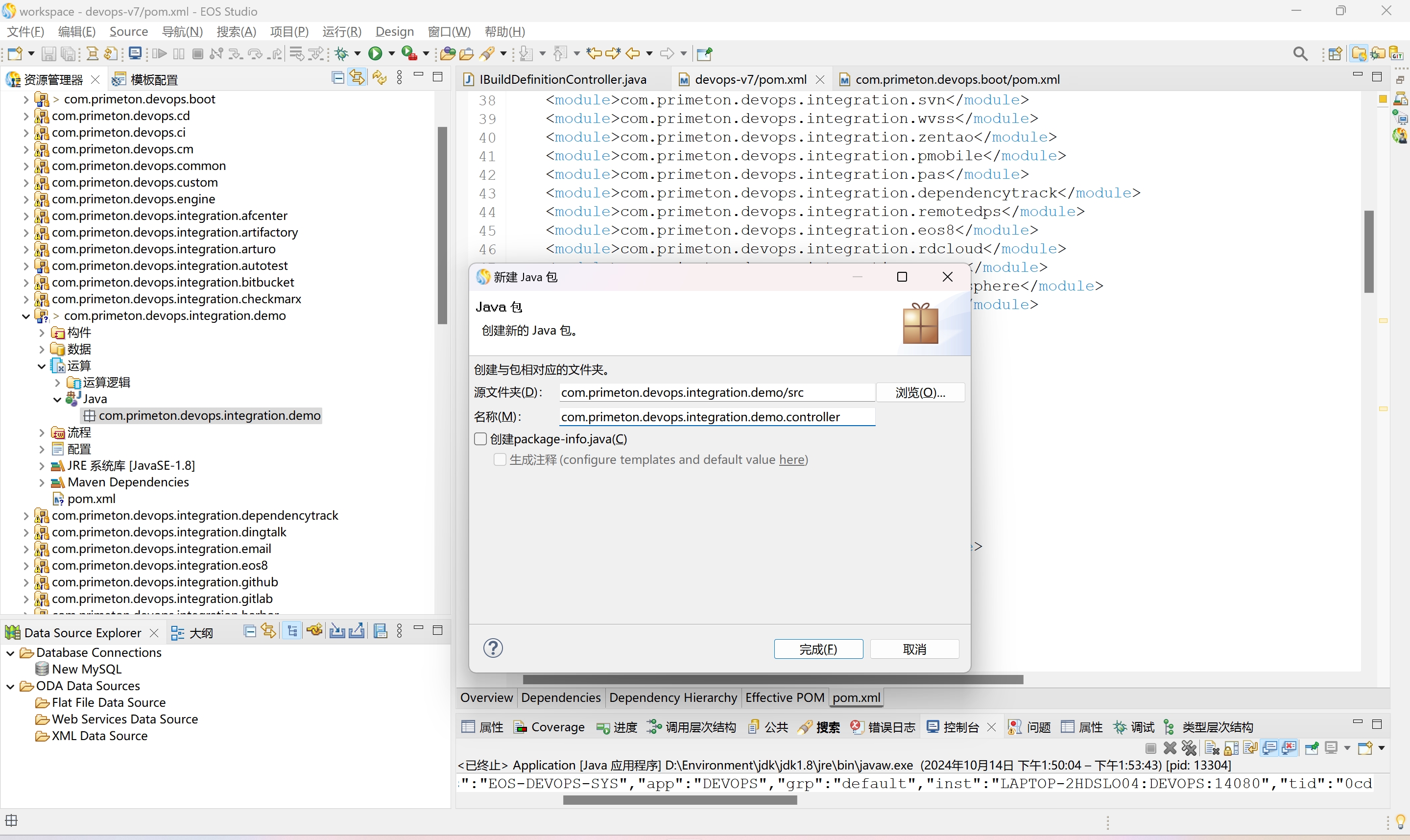

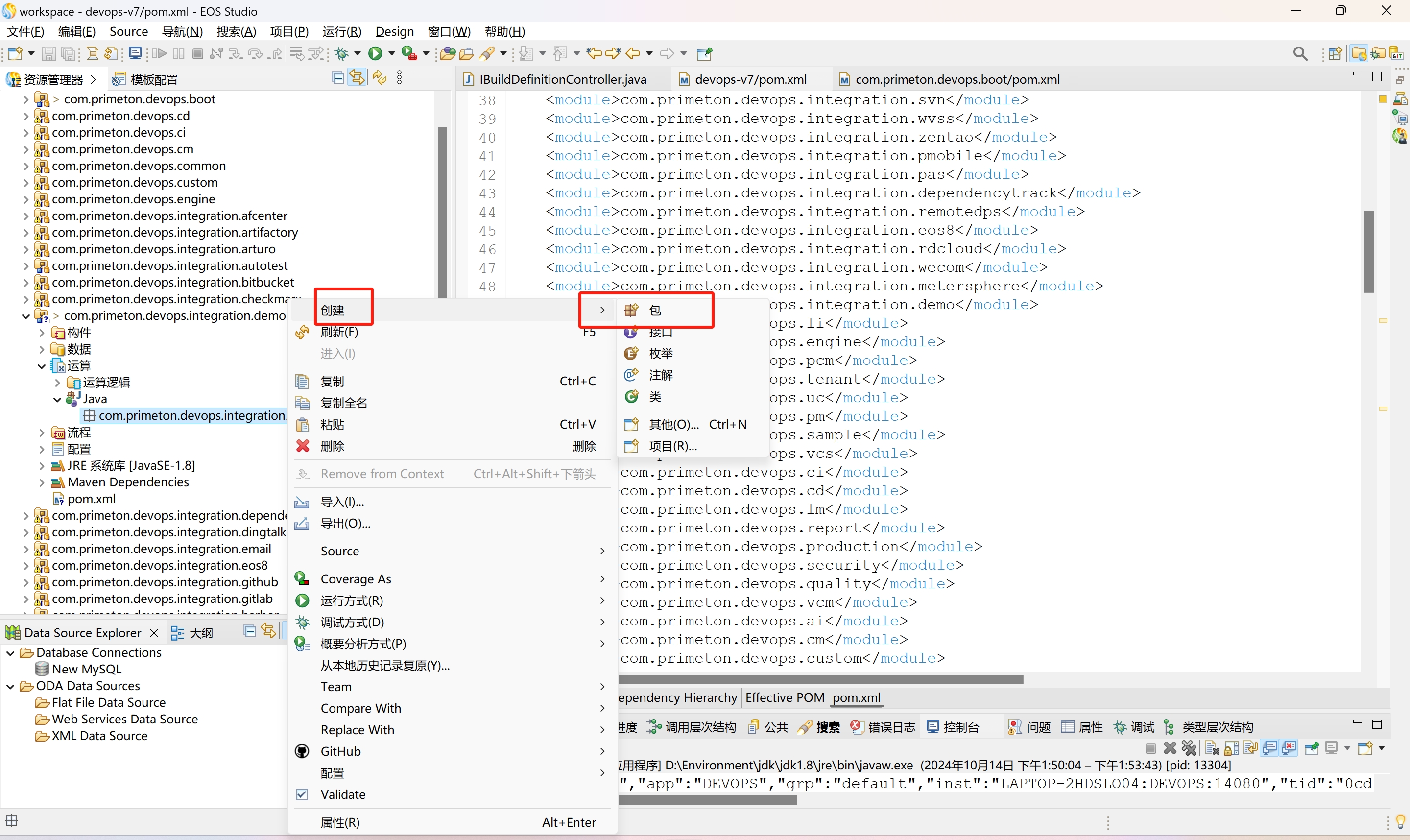

在新建的项目中创建包

eg.

'com.primeton.devops.integration.demo'

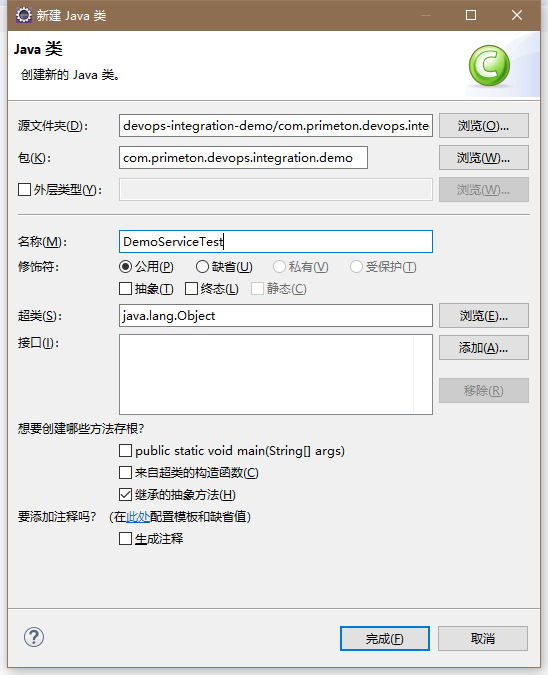

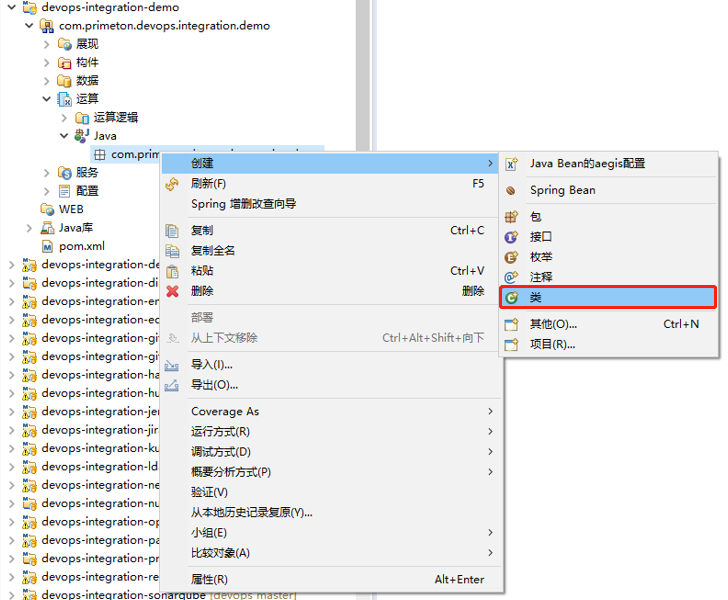

创建集成服务连通性测试类：'DemoServiceTest'

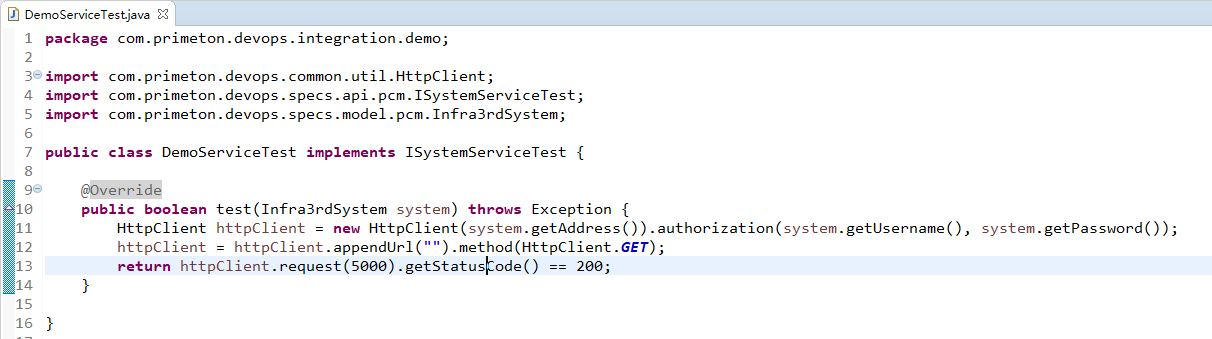

更新'DemoServiceTest'测试类，需要实现'com.primeton.devops.specs.api.pcm.ISystemServiceTest'接口的test方法，如下为示例写法：

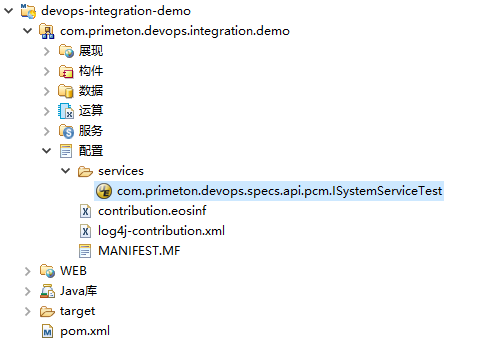

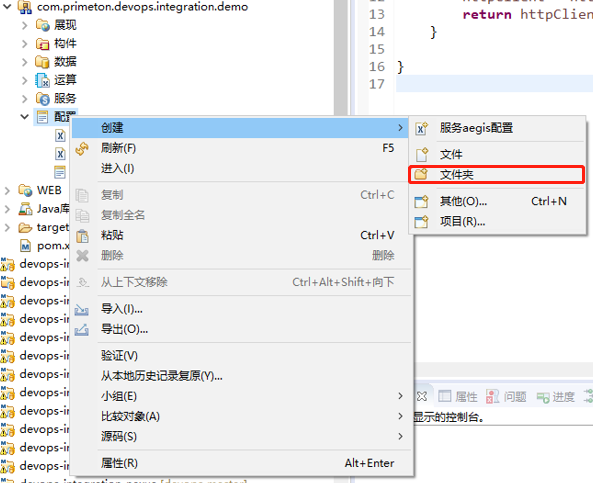

在配置路径中创建文件夹'services'，并在'services'文件夹中增加测试配置文件'com.primeton.devops.specs.api.pcm.ISystemServiceTest'

更新配置文件'com.primeton.devops.specs.api.pcm.ISystemServiceTest'内容

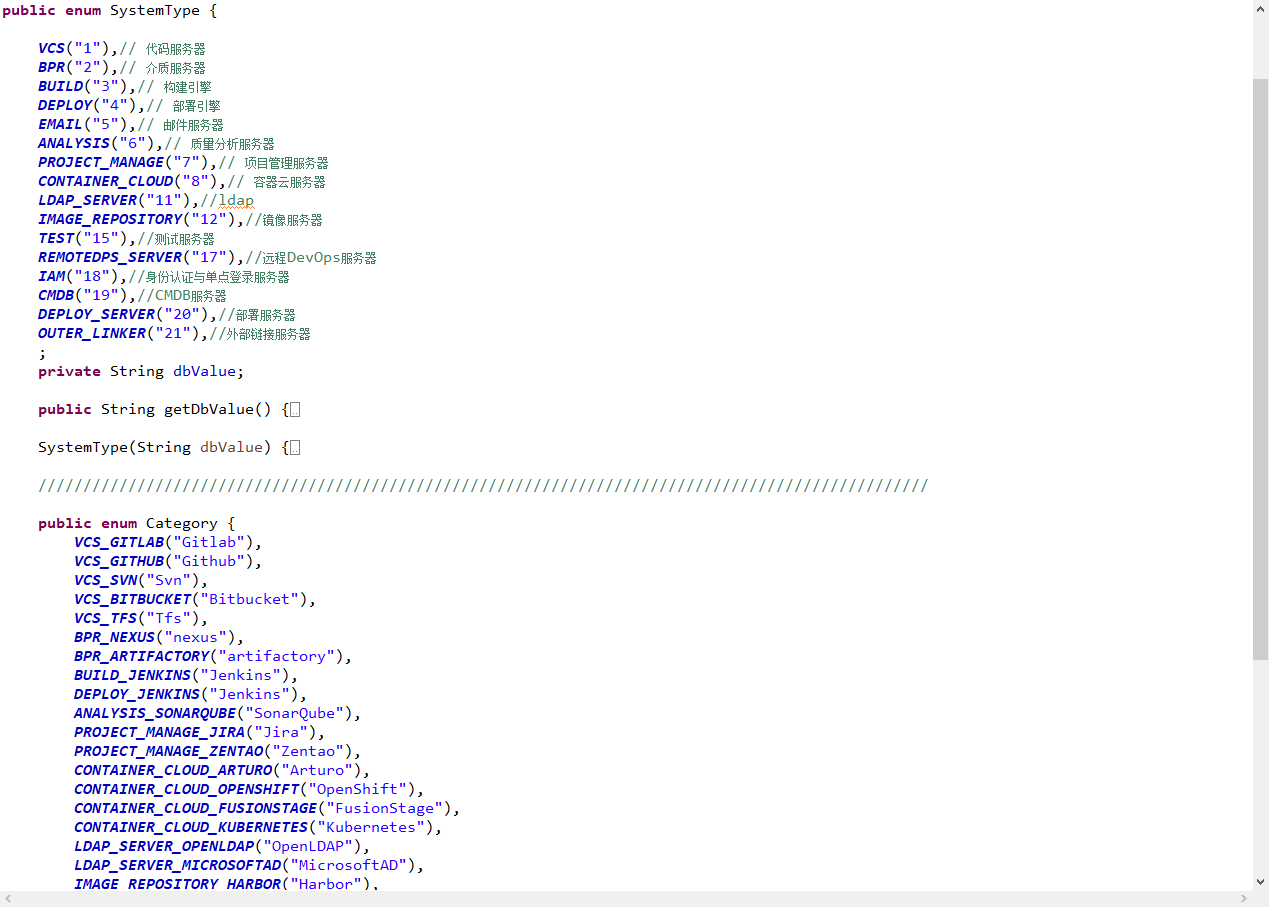

说明：SystemType以及Category请参考'com.primeton.devops.specs.constant.pcm.SystemType'枚举类，支持用户自定义

对应业务字典如下，如果需要自定义请按已有规则添加字典项

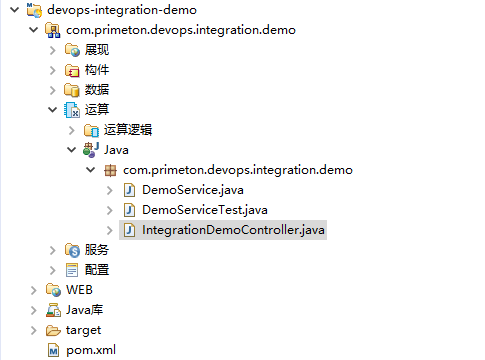

在新创建的包中创建集成服务类以及接口

eg.

'IntegrationDemoController'、'DemoService'

'IntegrationDemoController'示例如下

package com.primeton.devops.integration.demo.controller;

import org.apache.calcite.Demo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.MediaType;
import org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.PutMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import com.primeton.components.rest.annotation.MultiRequestBody;
import com.primeton.devops.integration.demo.service.DemoService;

import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import io.swagger.annotations.ApiParam;

/**
* IntegrationDemoController.
*
*/
@RestController
@RequestMapping(value = "/api/integration/demos", consumes = {MediaType.APPLICATION_JSON_VALUE}, produces = {MediaType.APPLICATION_JSON_VALUE})
@Api(tags="IntegrationDemoController", description = "Demo服务集成管理接口")
public class IntegrationDemoController {

    @Autowired
    private DemoService demoService;

    /**
    * 根据ID查询Demo信息
    *
    * @param demoId
    * @return Demo信息
    * @throws Exception
    */
    @GetMapping(value = "/{demoId}")
    @ApiOperation("根据ID查询Demo信息")
    Demo getDemo(
        @PathVariable(name = "demoId", required = false) @ApiParam("DemoID") String demoId,
        @RequestParam(name = "systemId", required = false) @ApiParam("系统Id") String systemId) throws Exception {
        return demoService.getDemo(systemId, demoId);
    }

    /**
    * 新建Demo
    *
    * @param demo Demo信息
    * @return
    * @throws Exception
    */
    @PostMapping
    @ApiOperation("新建Demo")
    Demo createDemo(@MultiRequestBody("demo") @ApiParam("Demo") Demo demo) throws Exception {
        return demoService.createDemo(demo);
    }

    /**
    * 修改Demo
    *
    * @param demoId DemoID
    * @param demo Demo信息
    * @return
    * @throws Exception
    */
    @PutMapping(value = "/{demoId}")
    @ApiOperation("修改Demo")
    Demo modifyDemo(
            @PathVariable(name = "demoId", required = false) @ApiParam("DemoID") String demoId,
            @MultiRequestBody("demo") @ApiParam("Demo") Demo demo) throws Exception {
        return demoService.modifyDemo(demo);
    }

    /**
    * 删除Demo
    *
    * @param demoId DemoID
    * @throws Exception
    */
    @DeleteMapping("/{demoId}")
    @ApiOperation("删除Demo")
    Demo removeDemo(
            @PathVariable(name = "demoId", required = false) @ApiParam("DemoID") String demoId) throws Exception {
        return demoService.removeDemo(demoId);
    }
}

'DemoService'示例如下

package com.primeton.devops.integration.demo.service;

import java.io.ByteArrayOutputStream;
import java.io.FileNotFoundException;
import java.lang.reflect.Array;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Map.Entry;

import org.apache.calcite.Demo;
import org.apache.commons.lang.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.primeton.devops.common.dao.DevOpsDao;
import com.primeton.devops.common.util.HttpClient;
import com.primeton.devops.common.util.JsonUtil;
import com.primeton.devops.specs.api.pcm.service.ISysConfService;
import com.primeton.devops.specs.model.pcm.Infra3rdSystem;
import com.primeton.ext.system.utility.HttpClient.Response;

@Service
public class DemoService {

    private static final String TOKEN_NAME = "Authorization";

    @Autowired
    private ISysConfService sysConfService;

    @Autowired
    private DevOpsDao baseDao;

    private <T> T get(String rootUrl, String apiToken, String restUri, Map<String, ?> queryParams, Class<T> retClass) throws Exception {
        return request(rootUrl, apiToken, restUri, queryParams, HttpClient.GET, null, retClass);
    }

    private <T> T post(String rootUrl, String apiToken, String restUri, Map<String, ?> queryParams, Object body, Class<T> retClass) throws Exception {
        return request(rootUrl, apiToken, restUri, queryParams, HttpClient.POST, body, retClass);
    }

    private <T> T put(String rootUrl, String apiToken, String restUri, Map<String, ?> queryParams, Object body, Class<T> retClass) throws Exception {
        return request(rootUrl, apiToken, restUri, queryParams, HttpClient.PUT, body, retClass);
    }

    private <T> T delete(String rootUrl, String apiToken, String restUri, Map<String, ?> queryParams, Object body, Class<T> retClass) throws Exception {
        return request(rootUrl, apiToken, restUri, queryParams, HttpClient.DELETE, body, retClass);
    }

    private <T> T request(String rootUrl, String apiToken, String restUri, Map<String, ?> queryParams, String requestMethod, Object body, Class<T> retClass) throws Exception {
        try {
            HttpClient httpClient = new HttpClient(rootUrl + restUri).head(TOKEN_NAME, apiToken);
            if (queryParams != null && !queryParams.isEmpty()) {
                for (Entry<String, ?> entry : queryParams.entrySet().toArray(new Entry[0])) {
                    if (entry.getValue() == null || StringUtils.isBlank(String.valueOf(entry.getValue()))) {
                        queryParams.remove(entry.getKey());
                    }
                }
            }

            httpClient = httpClient.queryParams(queryParams).method(requestMethod);
            if (body != null) {
                httpClient.body(JsonUtil.toJson(body));
            }
            if (retClass != null && retClass == byte[].class) {
                ByteArrayOutputStream responseOutput = new ByteArrayOutputStream();
                httpClient.setResponseOutput(responseOutput);
                httpClient.request(-1);
                return (T)responseOutput.toByteArray();
            }
            Response response = httpClient.request(-1);
            if (retClass == null) {
                return null;
            }
            return response.getBodyObject(retClass);
        } catch (Exception e) {
            if ((HttpClient.GET.equals(requestMethod) || HttpClient.DELETE.equals(requestMethod))
                && (e.getMessage().contains("[statusCode=400]") || e.getCause() instanceof FileNotFoundException)) {
                if (retClass == null) {
                    return null;
                }
                if (retClass.isArray()) {
                    return (T)Array.newInstance(retClass.getComponentType(), 0);
                } else if (List.class.isAssignableFrom(retClass)) {
                return (T)new ArrayList<>();
                }
                return null;
            }
            throw e;
        }
    }

    public Demo getDemo(String systemId, String demoId) throws Exception {
        Infra3rdSystem sysConf = sysConfService.getSysConf(systemId);
        Map queryParams = new HashMap<>();
        return toDemo(get(sysConf.getAddress(), sysConf.getApiToken(), "", queryParams, Map.class));
    }

    private Demo toDemo(Map map) throws Exception {
        return null;
    }

    public Demo createDemo(Demo demo) throws Exception {
        baseDao.insertEntity(demo);
        return demo;
    }

    public Demo modifyDemo(Demo demo) throws Exception {
        baseDao.updateEntity(demo);
        return demo;
    }

    public Demo removeDemo(String demoId) throws Exception {
        Demo demo = baseDao.getEntityByKey(Demo.class.getName(), demoId);
        baseDao.deleteEntityByKey(Demo.class.getName(), demoId);
        return demo;
    }
}

# 前端集成开发

1、修改 scripts/buildApi.js 中 swagger.json 的在线地址

   (function () {
     // 读取 在线 swagger
     var url = "http://10.15.15.109:8080/swagger/swagger.json";
     execute(url).then((data) => {
        console.log(`read ${url} ...`)
        mapAction(data)
     }).then(() => {
        console.log('create controller')
        createController()
     })
   })()

2、运行 npm run build:api

以'IBomController'为示例:

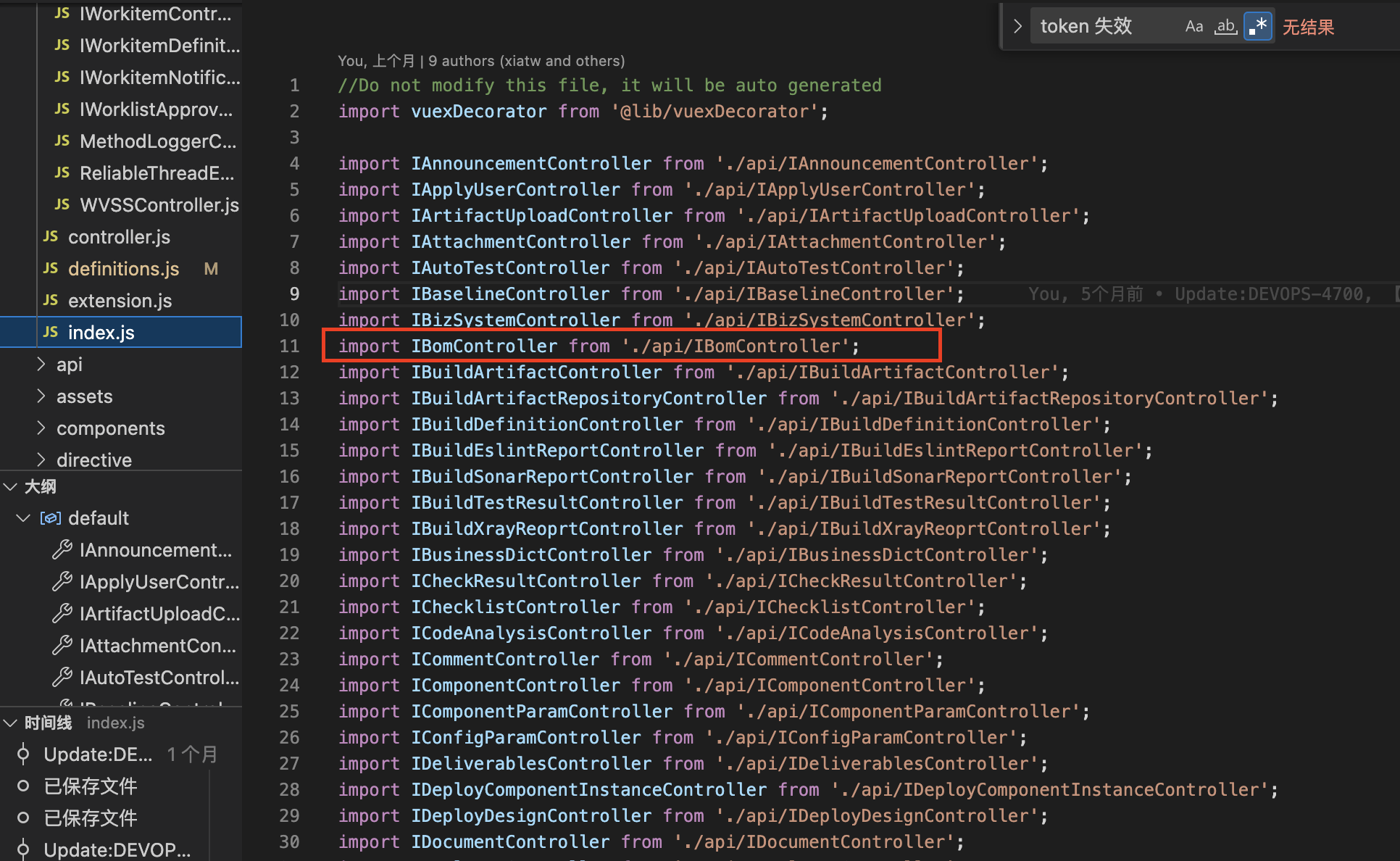

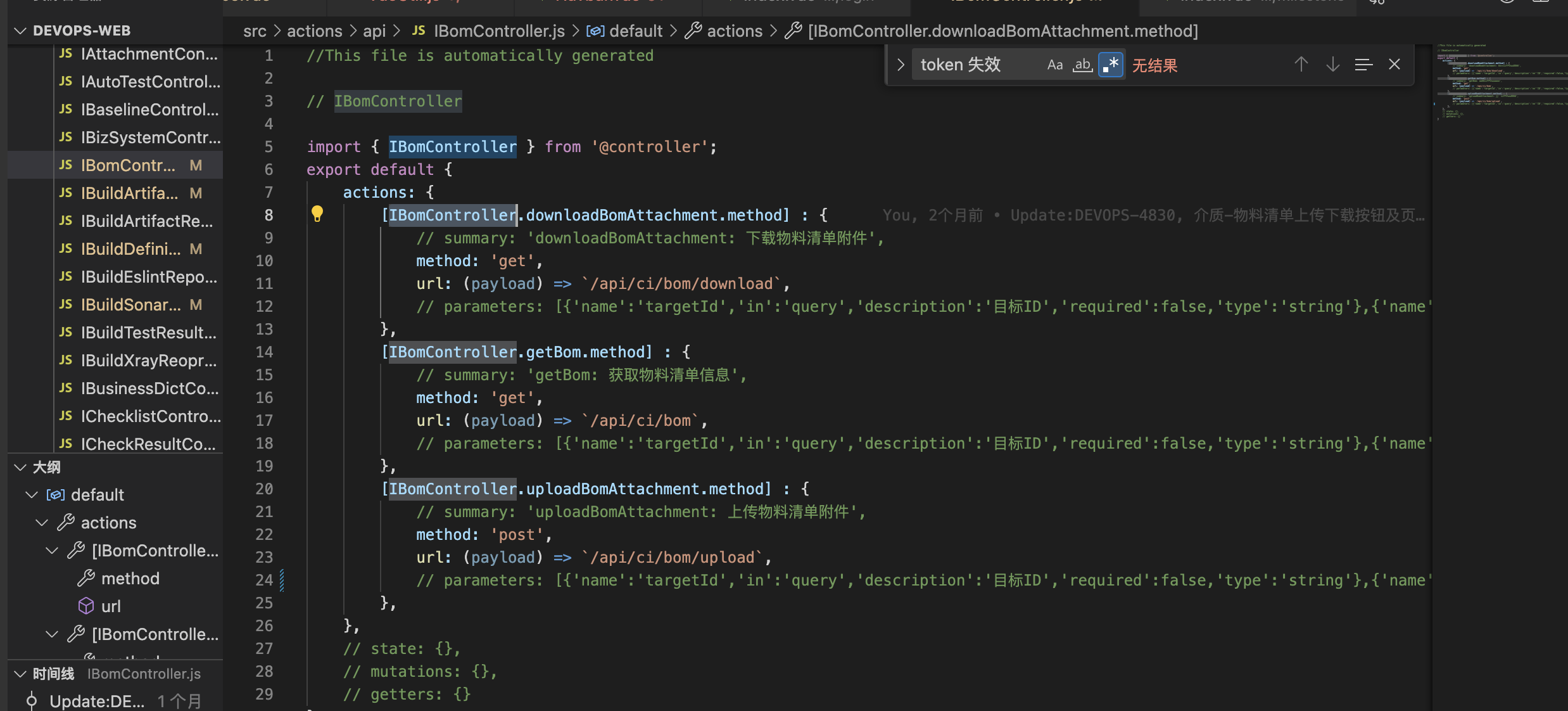

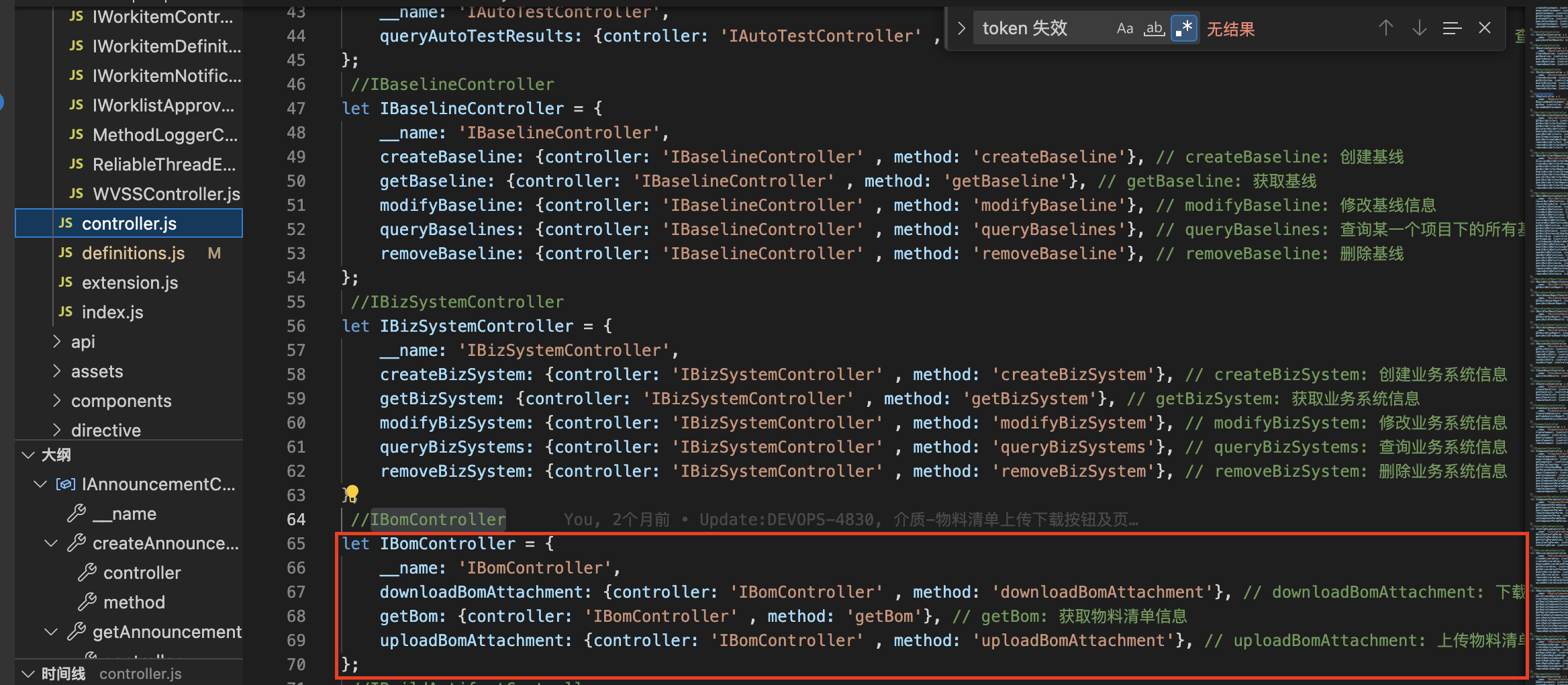

运行 npm run build:api 后自动生成下列'IBomController'内容
